101769.00 Leeson | 1/3 hp 1800 RPM 56C Frame TEFC C-Face (No Base) 208-230/460V
This Leeson 1/3 horsepower, three-phase electric motor is designed for general-purpose industrial applications requiring a C-face mount. It is suitable for replacing or installing in equipment needing a 56C frame motor with a totally enclosed fan-cooled (TEFC) design.
Key Specifications
- Horsepower: 1/3 hp
- RPM: 1800
- Voltage: 208-230/460 V
- Amperage: 1.6/0.8 A
- Enclosure: Totally Enclosed Fan Cooled (TEFC)
- Frame / Diameter: NEMA 56C Frame
- Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, Keyed Shaft
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment

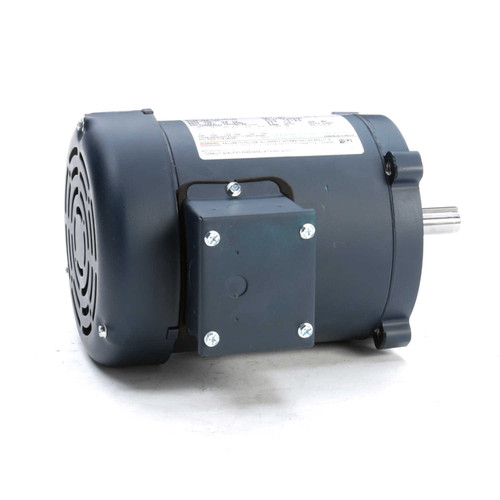

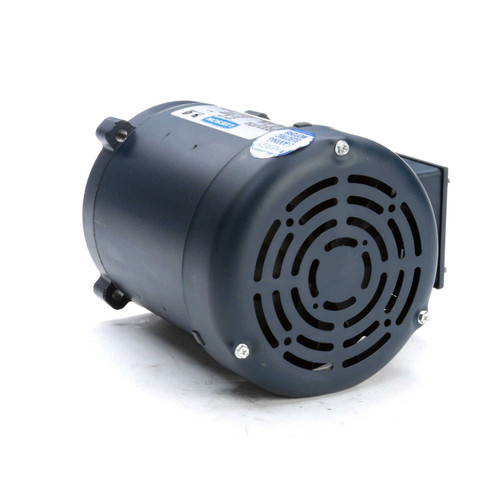

This motor features a round body with no base, allowing flexible mounting options. It includes a C-face mount with four threaded bolt holes spaced 5 7/8" on center across the shaft, facilitating direct attachment of pumps or gearheads. The shaft is keyed for secure coupling, and the wiring diagram is provided on the motor nameplate for easy installation.
Warranty
1 Year Manufacturer Warranty
