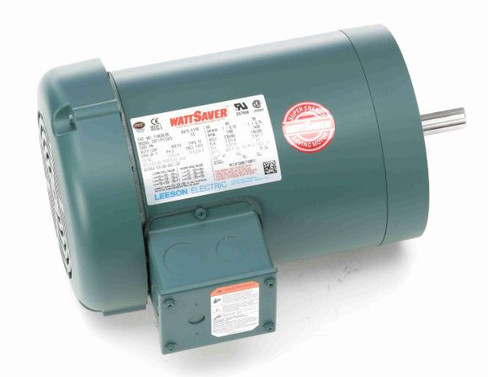

This Leeson 1 hp, 1800 RPM three-phase motor is designed for general-purpose industrial applications requiring a NEMA 56C frame with a C-face mount. It replaces model 110048.00 and is suitable for driving pumps, gear heads, and other machinery needing a reliable TEFC motor.

Key Specifications

• Horsepower: 1 hp
• RPM: 1800
• Voltage: 208-230/460 V
• Amperage: 3.2/1.6 A

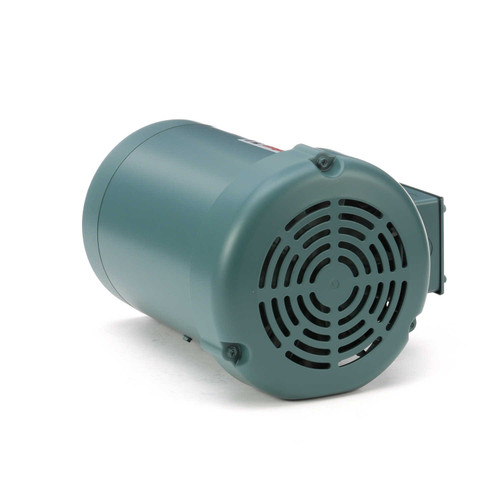

• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

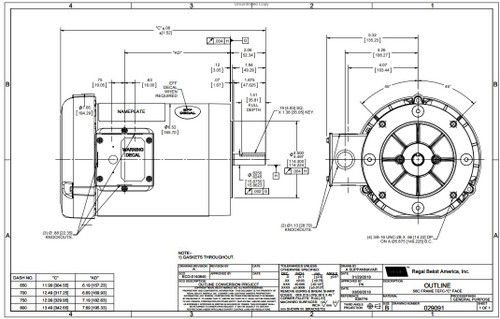

This motor features a round body design without a base and includes a rigid C-face mount with four threaded bolt holes spaced 5 7/8" on center for secure attachment of pumps or gear heads. The shaft has a keyway for positive drive connection. Wiring diagrams are provided on the motor nameplate for ease of installation.

Cross Reference

• 110048.00

Warranty

1 Year Manufacturer Warranty
