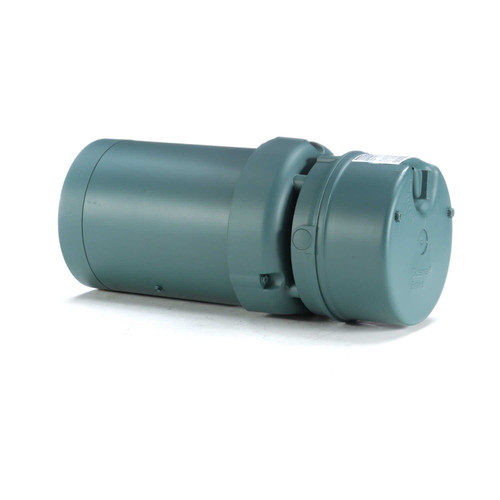

119564.00 Leeson | 1 hp 1800 RPM 56C Frame TEFC C-Face (No Base) Brake Motor 208-230/460V

119564.00 Leeson | 1 hp 1800 RPM 56C Frame TEFC C-Face (No Base) Brake Motor 208-230/460V

This Leeson 1 hp brake motor operates at 1800 RPM and is designed for three-phase industrial applications. It replaces Marathon K472 and 056T17F15917 models, providing reliable braking and motor performance in a compact, base-less design.

Key Specifications

• Horsepower: 1 hp
• RPM: 1800
• Voltage: 208-230/460 V
• Amperage: 3.2/1.6 A
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame / Diameter: NEMA 56C Frame

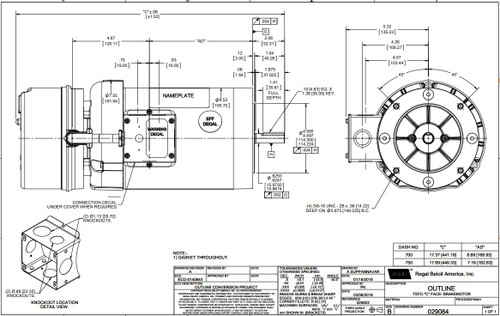

• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length

Product Features & Fitment

This round body motor features a fail-safe, spring-set brake that automatically stops and holds the load when power is turned off. The brake coil (230/460 VAC, 60 Hz) leads are brought into the motor’s conduit box for easy wiring and can be configured to actuate either on power loss or independently. A power-off manual release is included for convenience and emergency use, resetting automatically. The motor is supplied without a base and includes a keyed shaft for secure mounting.

Cross Reference

• Marathon K472, 056T17F15917

Warranty

1 Year Manufacturer Warranty
