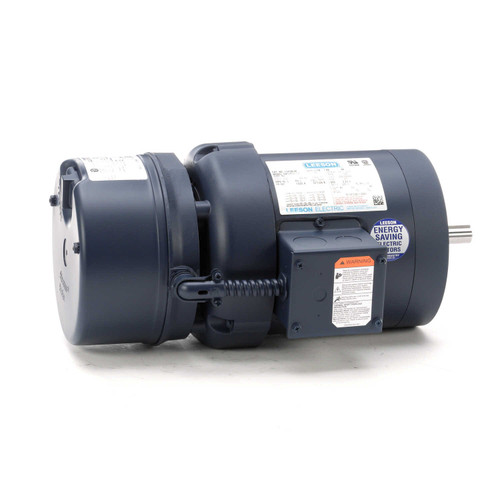

114159.00 Leeson | 1/2 hp 1725 RPM 56C Frame TEFC C-Face (No Base) Brake Motor 208-230/460V
This Leeson 1/2 hp brake motor is designed for industrial applications requiring reliable stopping and holding torque. It replaces standard motors where a fail-safe, spring-set brake is needed to automatically stop the load when power is removed.
Key Specifications
- Horsepower: 1/2 hp
- RPM: 1800 RPM
- Voltage: 208-230/460V, 60 Hz
- Amperage: 2.0/1.0 Amps
- Enclosure: Totally Enclosed Fan Cooled (TEFC)

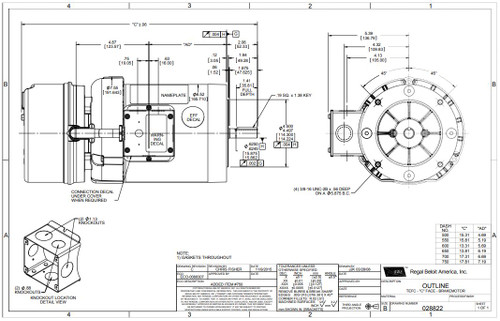

- Frame / Diameter: NEMA 56C Frame
- Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
Product Features & Fitment
This motor features a round body with no base and a C-face mounting configuration for easy integration into existing equipment. The brake is spring-set for fail-safe operation, automatically stopping the load when power is turned off. It includes a power-off manual release that resets automatically, allowing manual brake release during power failure or maintenance. The brake coil leads are accessible in the motor’s conduit box for straightforward wiring and can be actuated either when motor power is off or independently. The brake coil operates at 230/460 VAC, 60 Hz.
Warranty
1 Year Manufacturer Warranty
