114155.00 Leeson | 3/4 hp 1725 RPM 56C Frame TEFC C-Face (Rigid Base) Brake Motor 208-230/460V

114155.00 Leeson | 3/4 hp 1725 RPM 56C Frame TEFC C-Face (Rigid Base) Brake Motor 208-230/460V

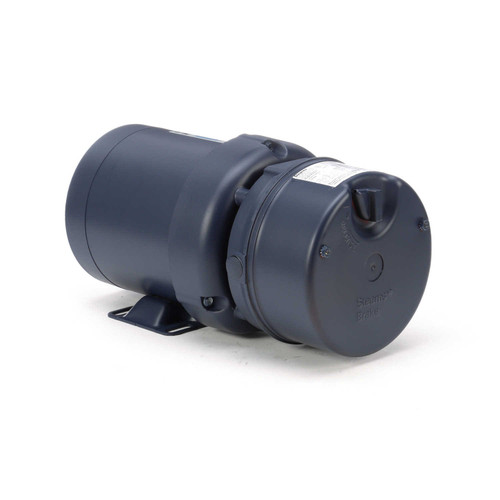

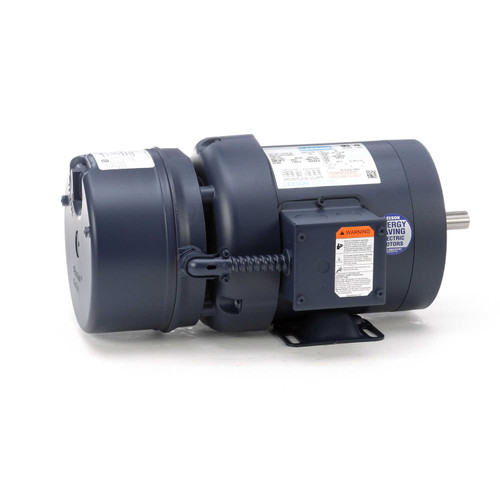

This Leeson 3/4 hp brake motor is designed for industrial applications requiring reliable stopping and holding capabilities. It replaces standard motors where a fail-safe, spring-set brake is essential for load control and safety.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1800 RPM
• Voltage: 208-230/460 V, 60 Hz
• Amperage: 2.8/1.4 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

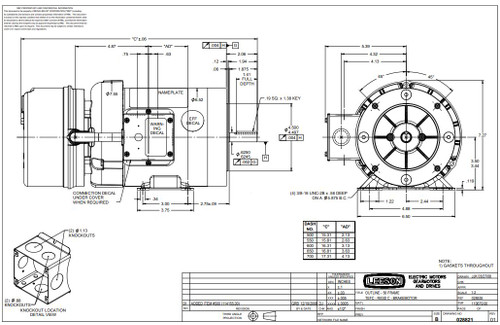

• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length
• Mounting: Rigid Base with C-Face

Product Features & Fitment

This motor features a fail-safe, spring-set brake that automatically stops the load when power is removed. The brake coil (230/460 VAC, 60 Hz) wiring is brought into the motor’s conduit box for easy connection and can be configured to operate either when power to the motor is off or independently. A power-off manual release is included for convenience and emergency use, resetting automatically. The brake is manufactured by Stearns, ensuring reliable performance in demanding environments.

Warranty

1 Year Manufacturer Warranty
