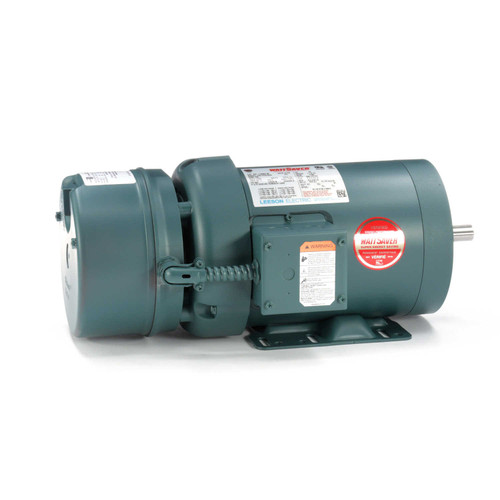

119563.00 Leeson | 1 hp 1800 RPM 56C Frame TEFC C-Face (Rigid Base) Brake Motor 208-230/460V

119563.00 Leeson 1 hp 1800 RPM 56C Frame TEFC C-Face (Rigid Base) Brake Motor 208-230/460V

This Leeson 1 hp brake motor operates at 1800 RPM and is designed for three-phase industrial applications requiring reliable stopping and holding capabilities. It replaces Marathon model D456 and 056T17F5357, making it suitable for direct replacement in compatible equipment.

Key Specifications

• Horsepower: 1 hp
• RPM: 1800
• Voltage: 208-230/460 V
• Amperage: 3.2/1.6 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length
• Rotation: Not specified
• Bearings: Not specified

Product Features & Fitment

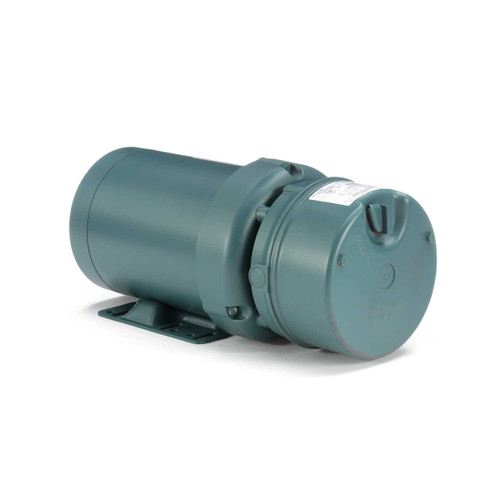

This motor features a rigid base with a C-face mount for versatile installation options. It includes a fail-safe, spring-set brake manufactured by Stearns that automatically stops the load when power is removed. The brake coil leads are routed into the motor’s conduit box for easy wiring and can be configured to actuate either when power to the motor is off or independently. A power-off manual release is provided for convenience and emergency use, with automatic reset functionality. The brake coil operates at 230/460 VAC, 60 Hz.

Cross Reference

• Marathon D456, 056T17F5357

Warranty

1 Year Manufacturer Warranty
