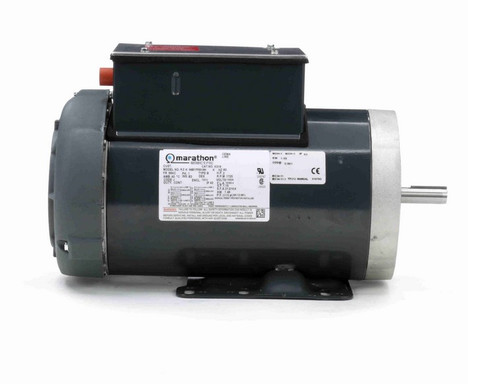

K319 Marathon 2 hp 1800 RPM 56HC Frame TEFC 115/230V Marathon Electric Motor

K319 Marathon 2 hp 1800 RPM 56HC Frame TEFC 115/230V Marathon Electric Motor

This Marathon 2 hp single-phase electric motor operates at 1800 RPM and is designed for general-purpose applications requiring a C-face mount. It replaces Century model C213V1 and is suitable for use with pumps, gear heads, and other equipment needing a 56C frame motor.

Key Specifications

• Horsepower: 2 hp
• RPM: 1800
• Voltage: 115/230 V
• Amperage: 18.8/9.4 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56C frame
• Shaft Dimensions: 5/8" diameter x 1 7/8" length, keyed shaft
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

The motor features a rigid base and a combination base suitable for replacing 145T frame motors. It includes a C-face with four threaded bolt holes spaced 5 7/8" on center across the shaft for mounting pumps or gear heads. The shaft has a keyway for secure coupling. Wiring diagrams are provided on the motor nameplate. Overload protection is manual, and the motor is rated with a service factor of 1.15.

Cross Reference

• Century C213V1

Warranty

1 Year Manufacturer Warranty
