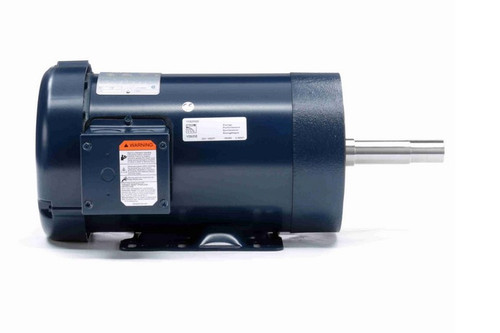

GT3107 Marathon 2 hp 3 phase 1800 RPM 145JM Frame 230/460V TEFC Marathon Close Coupled Pump Motor

SKU:: GT3107
UPC:
Weight:: 54.00 LBS
Width:: 15.00 (in)
Height:: 17.00 (in)
Depth:: 23.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 230/460V
Horsepower:: 2 HP
RPM:: 1800
Phase:: Three Phase
Frame:: 145JM
Enclosure:: TEFC
Hertz:: 60 Hz
Amperage:: 5.8/2.9 Amps
Bearings:: Ball Bearings
Insulation Class:: Class F
Mounting:: C-Face
Duty:: continuous duty

Current Stock:

Was: $813.86

Now: $717.95

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

GT3107 Marathon 2 hp 3 Phase 1800 RPM 145JM Frame 230/460V TEFC Close Coupled Pump Motor

This Marathon 2 hp, 3-phase motor is designed for continuous duty service on close coupled pumps. It replaces the Leeson C145T17FK72A (Part #122091.00) and is ideal for industrial pump applications requiring reliable performance and durability.

Key Specifications

Horsepower: 2 hp
RPM: 1800
Voltage: 230/460 V
Amperage: 5.8/2.9 A
Enclosure: Totally Enclosed Fan Cooled (TEFC)
Frame / Diameter: NEMA 145JM frame, C-face
Shaft Dimensions: 7/8" diameter x 2 1/4" length, internal threaded
Rotation: Reversible
Bearings: Ball bearings

Product Features & Fitment

The motor features a rigid base mount with a JM shaft, suitable for close coupled pump installations. It includes Class F insulation and a wiring diagram located on the motor nameplate for ease of installation. This model does not include overload protection and is engineered for reliable, continuous operation in demanding environments.
