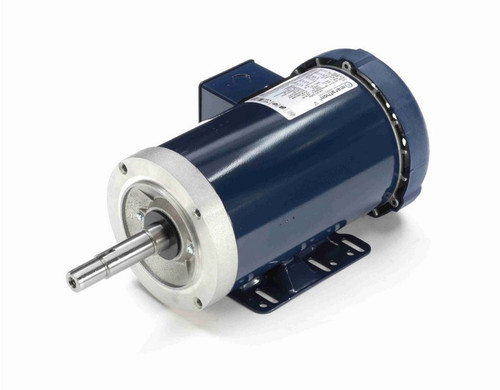

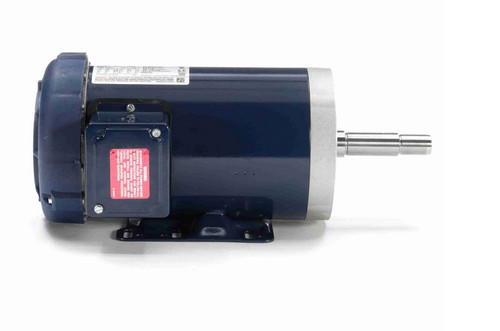

U363A Marathon 3 hp 3 phase 3600 RPM 145JM Frame 230/460V TEFC Marathon Close Coupled Pump Motor
U363A Marathon 3 hp 3 phase 3600 RPM 145JM Frame 230/460V TEFC Marathon Close Coupled Pump Motor
U363A Marathon 3 hp 3 phase 3600 RPM 145JM Frame 230/460V TEFC Marathon Close Coupled Pump Motor
U363A Marathon 3 hp 3 phase 3600 RPM 145JM Frame 230/460V TEFC Marathon Close Coupled Pump Motor
U363A Marathon 3 hp 3 phase 3600 RPM 145JM Frame 230/460V TEFC Marathon Close Coupled Pump Motor
U363A Marathon 3 hp 3 phase 3600 RPM 145JM Frame 230/460V TEFC Marathon Close Coupled Pump Motor
U363A Marathon 3 hp 3 phase 3600 RPM 145JM Frame 230/460V TEFC Marathon Close Coupled Pump Motor
U363A Marathon 3 hp 3 phase 3600 RPM 145JM Frame 230/460V TEFC Marathon Close Coupled Pump Motor

Marathon

U363A Marathon 3 hp 3 phase 3600 RPM 145JM Frame 230/460V TEFC Marathon Close Coupled Pump Motor

(No reviews) Write a Review
$853.53
$759.81
SKU MU363A
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 230/460V
Horsepower 3 HP
RPM 3600
Phase Three Phase
Frame 145JM
Enclosure TEFC
Hertz 60 Hz
Amperage 7.6/3.8 Amps
Bearings Ball Bearings
Insulation Class Class F
Mounting C-Face
Duty continuous duty
Adding to cart… The item has been added
Description
  • 3 hp 3600 RPM 7.6/3.8 amps 230/460 Volts 60hz. 3 phase motor
  • NEMA 145JM frame, C-face, Internal threaded shaft 7/8" diameter x 2 1/4"
  • Service Factor = 1.15, Overload protection = None
  • Reversible, Rigid Base Mount, Ball bearings, Class F insulation
  • One Year Manufacture Warranty

Designed for continuous duty service on close coupled pumps. Motor has rigid base with JM shaft. TEFC = Totally Enclosed Fan Cooled, Wiring diagram on motor name plate. 145TTFR16106

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 230/460V
Horsepower 3 HP
RPM 3600
Phase Three Phase
Frame 145JM
Enclosure TEFC
Hertz 60 Hz
Amperage 7.6/3.8 Amps
Bearings Ball Bearings
Insulation Class Class F
Mounting C-Face
Duty continuous duty
!
