Marathon

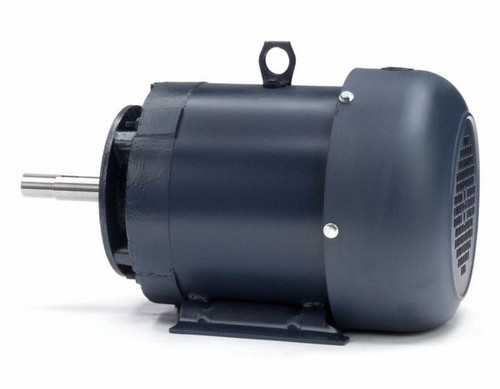

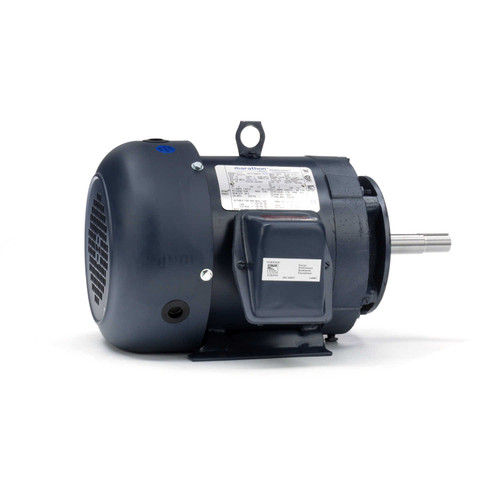

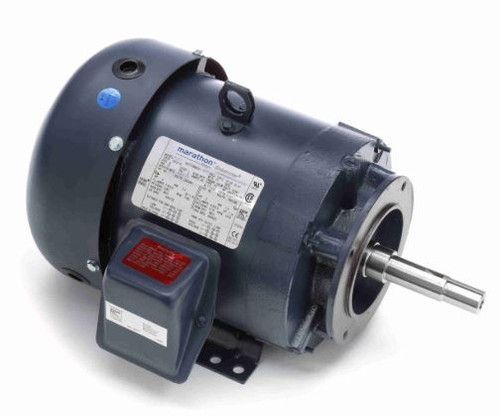

GT3109A Marathon 3 hp 3600 RPM 182JM Frame TEFC 230/460V Marathon Close Couple Motor
(No reviews)
Write a Review
Write a Review
Marathon
GT3109A Marathon 3 hp 3600 RPM 182JM Frame TEFC 230/460V Marathon Close Couple Motor
$839.96
$718.75
SKU
GT3109A
UPC
7.23E+11
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
230/460V
Horsepower
3 HP
RPM
3600
Phase
Three Phase
Frame
182JM
Enclosure
TEFC
Hertz
60 Hz
Amperage
8.0/4.0 Amps
Bearings
Ball Bearings
Insulation Class
Class F
Mounting
Rigid Base
Duty
Continuous duty
- 3 hp 3600 RPM 182JM Frame, 8.0/4.0 amps 230/460V 60hz Three Phase Motor
- Close Coupled Pump Motor - Rigid Base
- Totally Enclosed Fan cooled (TEFC) - Service Factor = 1.15
- Class F Insulation; Ball Bearings
- Continuous duty
- One Year Manufacture Warranty

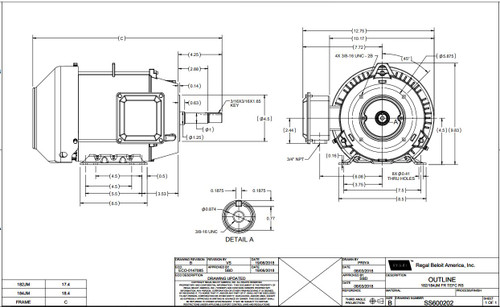

Close Coupled Pump Motor. Designed for continuous duty service on close Coupled pumps. Motor has rigid base. Wiring diagram on motor name plate. 182TTFBD6006
Replaces 199766.00, 199766; B199766.00, 199766; Dayton 52NU11
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 230/460V |
| Horsepower | 3 HP |
| RPM | 3600 |
| Phase | Three Phase |
| Frame | 182JM |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 8.0/4.0 Amps |
| Bearings | Ball Bearings |
| Insulation Class | Class F |
| Mounting | Rigid Base |
| Duty | Continuous duty |
