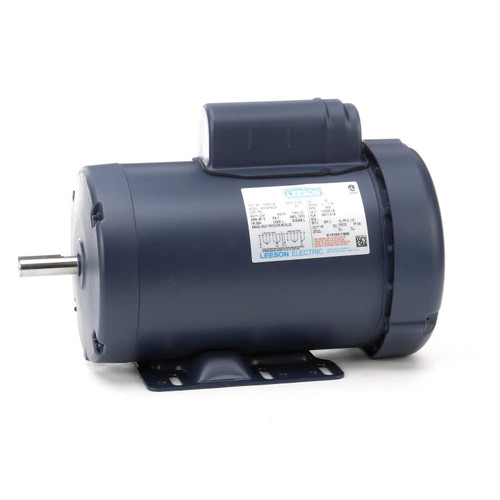

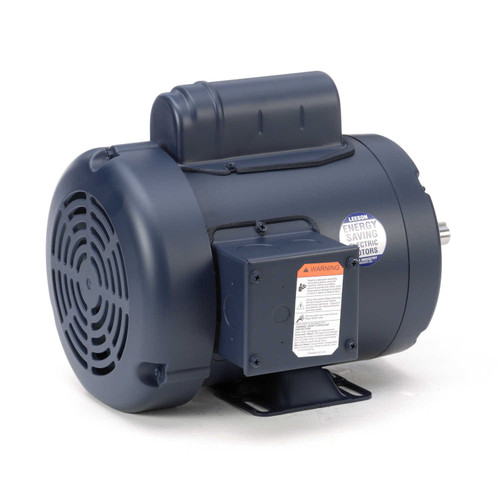

110402.00 Leeson | 2 hp 3450 RPM 56H Frame TEFC 115/208-230V w/Overload Protection
110402.00 Leeson | 2 hp 3450 RPM 56H Frame TEFC 115/208-230V w/Overload Protection
110402.00 Leeson | 2 hp 3450 RPM 56H Frame TEFC 115/208-230V w/Overload Protection
110402.00 Leeson | 2 hp 3450 RPM 56H Frame TEFC 115/208-230V w/Overload Protection
110402.00 Leeson | 2 hp 3450 RPM 56H Frame TEFC 115/208-230V w/Overload Protection
110402.00 Leeson | 2 hp 3450 RPM 56H Frame TEFC 115/208-230V w/Overload Protection
110402.00 Leeson | 2 hp 3450 RPM 56H Frame TEFC 115/208-230V w/Overload Protection
110402.00 Leeson | 2 hp 3450 RPM 56H Frame TEFC 115/208-230V w/Overload Protection

Leeson

110402.00 Leeson | 2 hp 3450 RPM 56H Frame TEFC 115/208-230V w/Overload Protection

(No reviews) Write a Review
$925.75
$784.99
SKU 110402.00
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/208/230V
Horsepower 2 HP
RPM 3450
Frame 56H
Enclosure TEFC
Hertz 60 Hz
Amperage 20.0/10.0 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 2 hp, 3450 RPM, 20.0/10.0 amps, 115/208-230V 60hz
  • 56H Frame - 5/8" x 1 7/8" Keyed Shaft
  • TEFC - Totally Enclosed Fan cooled
  • Manual Overload Protection - Service Factor 1.0
  • Class F Insulation
  • Rigid Base Mount - Ball Bearings

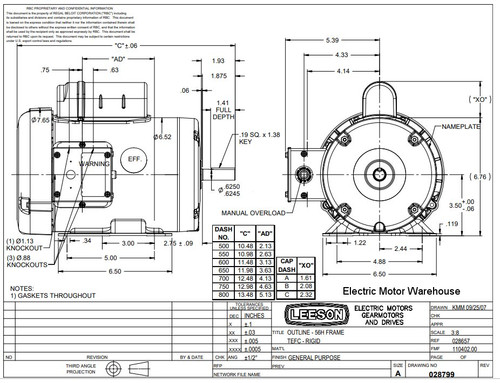

  • Overall Motor Length = 13.31 inches
  • One year manufacture warranty

This is an excellent motor for woodworking equipment such as table saws, planners, etc. Totally Enclosed Fan Cooled design prevent motor problems caused by wood dust and shavings. Motor has a keyed shaft and is electrically reversible. Motor name plate shows wiring diagram.

P6C34FB23H, 110402.00



Warranty Information
Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/208/230V
Horsepower 2 HP
RPM 3450
Frame 56H
Enclosure TEFC
Hertz 60 Hz
Amperage 20.0/10.0 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
!
