110109.00 Leeson | 1.5 hp 3450 RPM 56 Frame TEFC 115/208-230V w/Overload Protection

110109.00 Leeson | 1.5 hp 3450 RPM 56 Frame TEFC Motor with Overload Protection

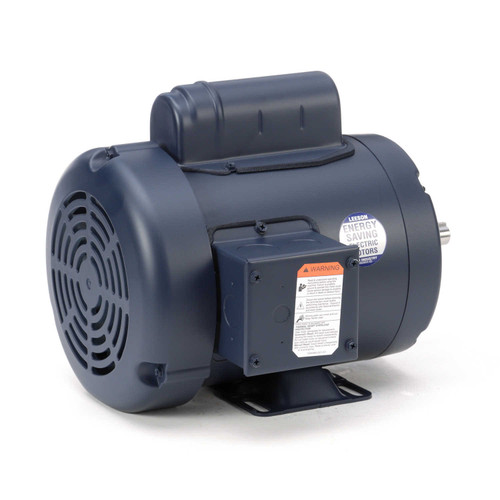

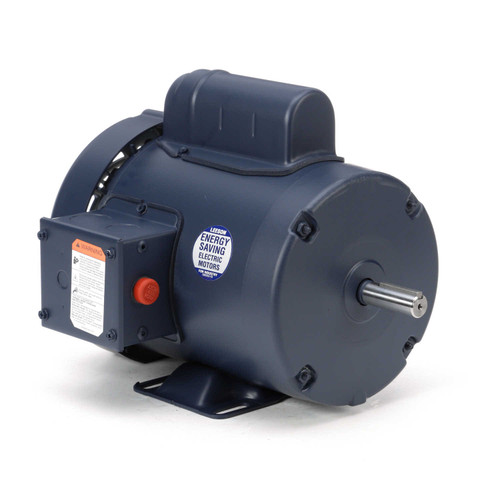

This 1.5 hp Leeson motor is designed to replace similar industrial motors and is ideal for woodworking equipment such as table saws and planers. Its robust construction and electrical features ensure reliable performance in demanding applications.

Key Specifications

• Horsepower: 1.5 hp
• RPM: 3450
• Voltage: 115/208-230V 60Hz
• Amperage: 17.0/8.5 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a rigid base mount for secure installation and includes manual overload protection with a service factor of 1.0. Its Class B insulation and TEFC design protect against dust and debris, making it well-suited for environments with wood dust and shavings. The motor is electrically reversible and includes a wiring diagram on the nameplate for easy setup. Overall motor length measures 12.31 inches.

Warranty

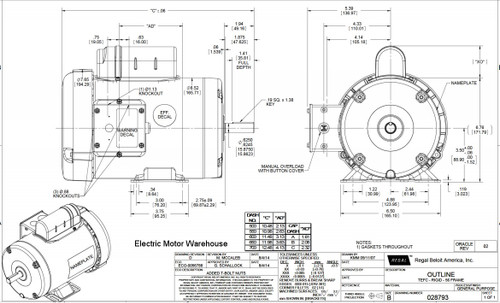

• Dimensional Drawing
