sale
Leeson

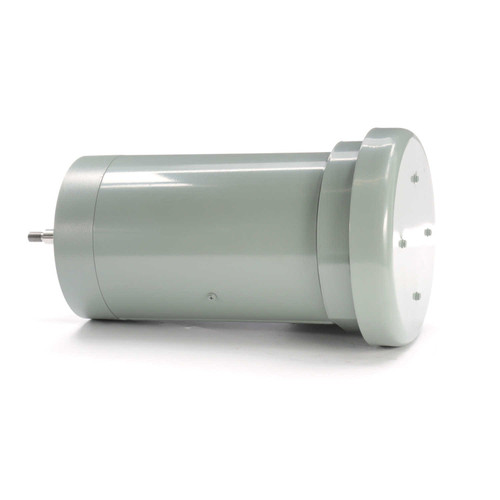

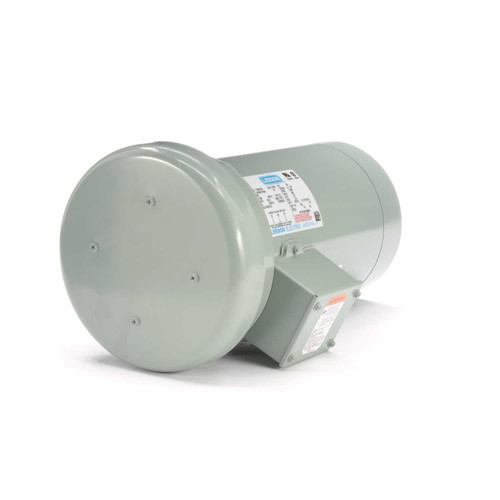

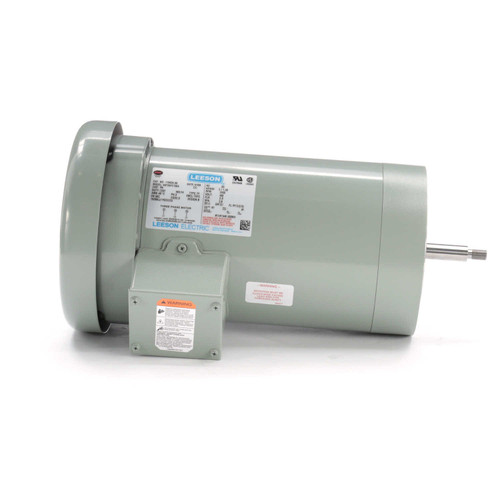

119534.00 Leeson | 2 hp 3450 RPM 56J Frame 460V Pivotal Irrigation Booster Farm Motor
(No reviews)
Write a Review
Write a Review
Leeson
119534.00 Leeson | 2 hp 3450 RPM 56J Frame 460V Pivotal Irrigation Booster Farm Motor
$945.30
$801.09
SKU
119534.00
UPC
6.92E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
460V
Horsepower
2 HP
RPM
3450
Phase
Three Phase
Frame
56J
Enclosure
TEFC
Hertz
60 Hz
Amperage
2.9 Amps
Service Factor
1.5
Insulation Class
Class F
Mounting
C-Face
- 2 hp 3450 RPM, 2.9 amps, 460 Volts 60hz Three Phase
- 5/8" diameter threaded shaft
- TEFC with rain canopy
- Rotation = Reversible; Insulation Class F
- Service Factor 1.5
- Epoxy paint and fully gasketed
- One year manufacture warranty.
Threaded-shaft jet pump motor for shaft down mounting. Locked bearing on shaft end, for longer motor life. Neoprene shaft flinger repels moisture. Drain holes in C face and conduit box. Stator impregnated with extra-heavy varnish system.
Model A6T34FC156A; 119534.00, Replaces 112991.00
| Voltage | 460V |
|---|---|
| Horsepower | 2 HP |
| RPM | 3450 |
| Phase | Three Phase |
| Frame | 56J |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 2.9 Amps |
| Service Factor | 1.5 |
| Insulation Class | Class F |
| Mounting | C-Face |
