sale

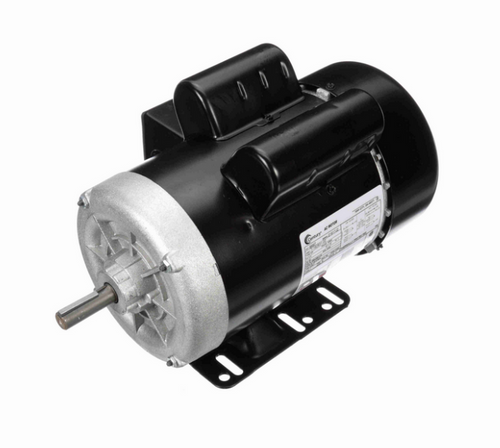

B697 Century 2 hp 3600 RPM 1-Phase 56 Frame TEFC (rigid base) 115/208-230V Century Motor # B697
B697 Century 2 hp 3600 RPM 1-Phase 56 Frame TEFC (rigid base) 115/208-230V Century Motor # B697
B697 Century 2 hp 3600 RPM 1-Phase 56 Frame TEFC (rigid base) 115/208-230V Century Motor # B697
B697 Century 2 hp 3600 RPM 1-Phase 56 Frame TEFC (rigid base) 115/208-230V Century Motor # B697
B697 Century 2 hp 3600 RPM 1-Phase 56 Frame TEFC (rigid base) 115/208-230V Century Motor # B697
B697 Century 2 hp 3600 RPM 1-Phase 56 Frame TEFC (rigid base) 115/208-230V Century Motor # B697
B697 Century 2 hp 3600 RPM 1-Phase 56 Frame TEFC (rigid base) 115/208-230V Century Motor # B697
B697 Century 2 hp 3600 RPM 1-Phase 56 Frame TEFC (rigid base) 115/208-230V Century Motor # B697

Century Electric Motor

B697 Century 2 hp 3600 RPM 1-Phase 56 Frame TEFC (rigid base) 115/208-230V Century Motor # B697

(No reviews) Write a Review
$721.51
$611.46
SKU B697
UPC 7.87E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/208/230V
Horsepower 2 HP
RPM 3600
Phase Single Phase
Frame 56
Enclosure TEFC
Hertz 60 Hz
Amperage 8.4 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 2 hp 3600 RPM, 16.6//9.1-8.4 amps 115/208-230 Volts 60hz. Capacitor Start / Capacitor Run
  • NEMA 56 frame, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15, Overload protection = Manual
  • Rigid Base, Reversible, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motors are for use in situations not having special requirements. This is a single phase motor with a rigid base mount. Shaft has keyway. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. B697

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/208/230V
Horsepower 2 HP
RPM 3600
Phase Single Phase
Frame 56
Enclosure TEFC
Hertz 60 Hz
Amperage 8.4 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Mounting Rigid Base
!
