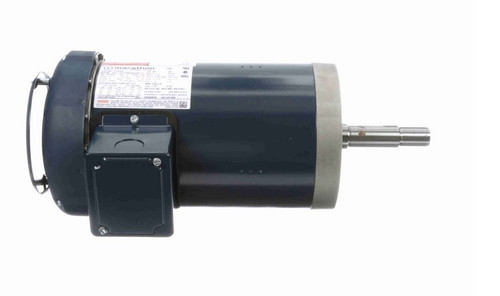

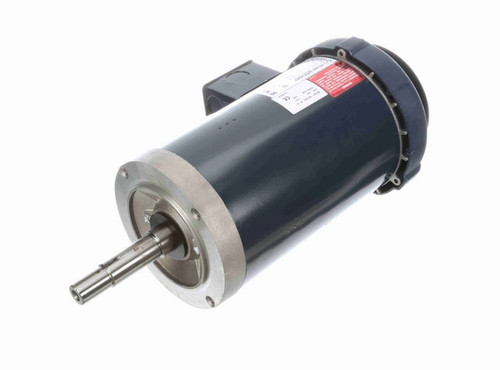

GT5106 Marathon 2 hp 3 phase 3600 RPM 145JMV Frame 230/460V TEFC Marathon Close Coupled Pump Motor

SKU:
GT5106
Weight:
49.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $530.90
Now: $341.00
Adding to cart… The item has been added
  • 2 hp 3600 RPM 5.0/2.5 amps 230/460 Volts 60hz. 3 phase motor
  • NEMA 145JMV frame with drip cover, C-face, Internal threaded shaft 7/8" diameter x 2 1/4"
  • Service Factor = 1.15, Overload protection = None
  • Reversible, No Base Mount, Ball bearings, Class F insulation
  • One Year Manufacture Warranty

Designed for continuous duty service on close coupled pumps. Motor has no base with JM shaft. TEFC = Totally Enclosed Fan Cooled, Wiring diagram on motor name plate. 145TTFR16012
