sale
Leeson

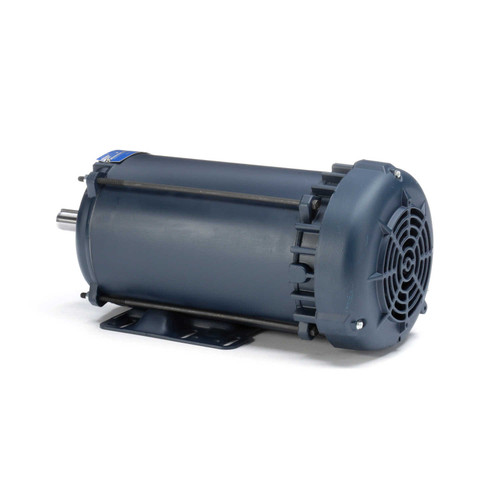

121916.00 Leeson | 2 hp 3600 RPM 145T 230/460V TEFC Explosion Proof
(No reviews)
Write a Review
Write a Review
Leeson
121916.00 Leeson | 2 hp 3600 RPM 145T 230/460V TEFC Explosion Proof
$1,380.00
$1,034.94
SKU
121916
UPC
6.92E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
230/460V
Horsepower
2 HP
RPM
3600
Phase
Three Phase
Frame
145T
Enclosure
TEFC
Hertz
50/60 Hz
Amperage
5.0/2.5 Amps
Service Factor
1.0
Insulation Class
Class B
- 2 hp 3600 RPM, 5.0/2.5 amps 208-230/460 Volts 50/60hz. Three Phase Motor

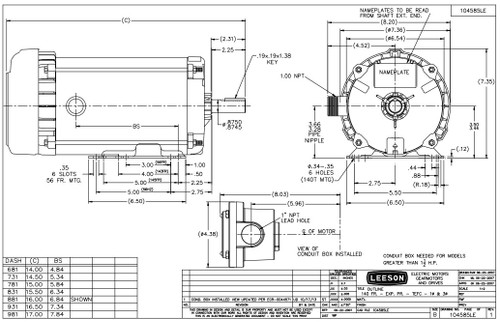

- NEMA 145T Frame Keyed Shaft 7/8" Diameter x 2 1/4"
- Explosion Proof: Class 1, Group C & D; Class II, Group F & G
- Service Factor: 1.0 - overload protection = Automatic
- Meets temperature code T3B, Class B Insulation
- TEFC Explosion Proof Fan cooled
- 1 Year Manufacture Warranty
Explosion Proof for hazardous locations. Underwrites Laboratories and Canadian Standards Association Listed. Explosion proof conduit box included at no extra cost. 1 year manufacture warranty.
A145T34XB25A, 121916.00
Replaces Leeson G120491.00
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 230/460V |
| Horsepower | 2 HP |
| RPM | 3600 |
| Phase | Three Phase |
| Frame | 145T |
| Enclosure | TEFC |
| Hertz | 50/60 Hz |
| Amperage | 5.0/2.5 Amps |
| Service Factor | 1.0 |
| Insulation Class | Class B |
Related Products
sale
Add to Cart
The item has been added
121917.00 Leeson | 2 hp 1725 RPM 145T 230/460V TEFC Explosion Proof
2 hp 1725 RPM, 6.0/3.0 amps 230/460 Volts 60hz. Three Phase Motor
NEMA 145T Frame Keyed Shaft 7/8" Diameter x 2 1/4"
Explosion Proof: Class 1, Group C & D; Class II, Group F & G
Service...
$1,392.65
$1,180.48
sale
Add to Cart
The item has been added
121915.00 Leeson | 1.5 hp 1725 RPM 145T 230/460V TEFC Explosion Proof
121915.00 Leeson | 1.5 hp 1725 RPM 145T 230/460V TEFC Explosion Proof
This Leeson 1.5 hp, 1725 RPM three-phase motor is designed for hazardous location applications requiring explosion-proof...
$1,261.55
$1,069.39
sale
Add to Cart
The item has been added

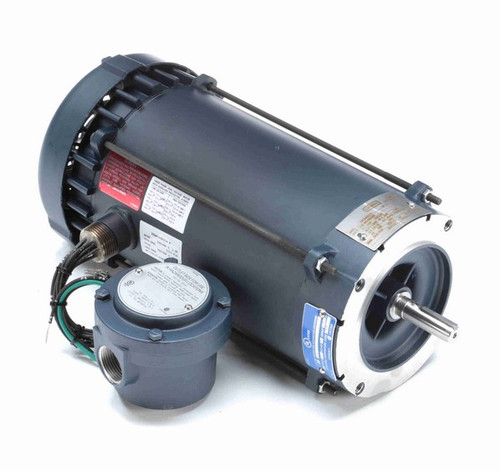

119431.00 Leeson 2 hp 3600 RPM 230/460V 56C Frame Explosion-Proof (No Base) 3-Phase TEFC Motor
119431.00 Leeson 2 hp 3600 RPM 230/460V 56C Frame Explosion-Proof (No Base) 3-Phase TEFC Motor
This Leeson motor is a 2 horsepower, 3-phase, explosion-proof motor designed for hazardous environments...
$1,359.30
$971.18
sale
Add to Cart
The item has been added

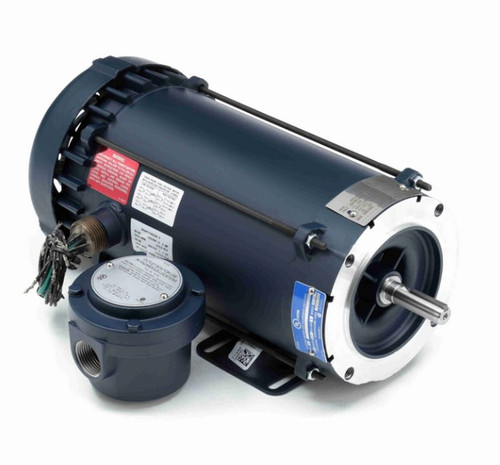

119442.00 Leeson 2 hp 3600 RPM 230/460V 56C Frame TEFC Explosion-Proof (Rigid Base) 3-Phase Motor
