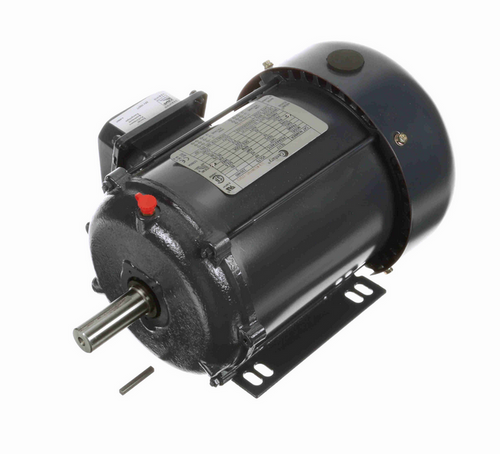

TE117 Century 2 hp 3600 RPM 3-Phase 145T Frame TEFC (rigid base) 208-230/460V Century Motor # TE117

TE117 Century 2 hp 3600 RPM 3-Phase 145T Frame TEFC (rigid base) 208-230/460V Century Motor # TE117

SKU:
TE117
Weight:
52.00 LBS
Width:
10.00 (in)
Height:
12.00 (in)
Depth:
16.00 (in)
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:
208/230/460V
Horsepower:
2 HP
RPM:
3600
Phase:
Three Phase
Frame:
145T
Enclosure:
TEFC
Hertz:
60 Hz
Amperage:
4.9/2.45 Amps
Bearings:
Ball Bearings
Service Factor:
1.15
Insulation Class:
Class F
Mounting:
Rigid Base
Was: $751.07
Now: $636.53
Adding to cart… The item has been added
  • 2 hp 3600 RPM, 4.9/2.45 amps 208-230/460 Volts 60hz. Three Phase

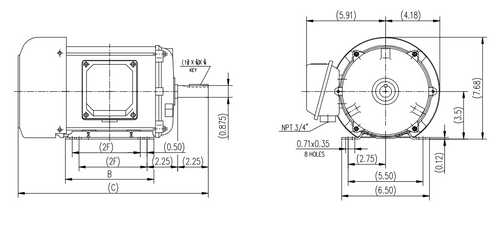

  • NEMA 145T frame, Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base with dual frame mounting holes, Reversible, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty. Meets NEMA premium efficiencies

General purpose motors are for use in situations not having special requirements. This is a three phase motor with a rigid base mount. Shaft has keyway. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. TE117

!
