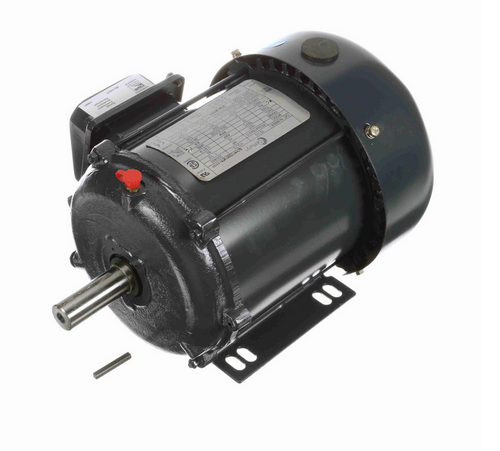

TE110 Century 1-1/2 hp 3600 RPM 3-Phase 143T Frame TEFC (rigid base) 208-230/460V Century Motor # TE110
TE110 Century 1-1/2 hp 3600 RPM 3-Phase 143T Frame TEFC (rigid base) 208-230/460V Century Motor # TE110
TE110 Century 1-1/2 hp 3600 RPM 3-Phase 143T Frame TEFC (rigid base) 208-230/460V Century Motor # TE110
TE110 Century 1-1/2 hp 3600 RPM 3-Phase 143T Frame TEFC (rigid base) 208-230/460V Century Motor # TE110
TE110 Century 1-1/2 hp 3600 RPM 3-Phase 143T Frame TEFC (rigid base) 208-230/460V Century Motor # TE110
TE110 Century 1-1/2 hp 3600 RPM 3-Phase 143T Frame TEFC (rigid base) 208-230/460V Century Motor # TE110
TE110 Century 1-1/2 hp 3600 RPM 3-Phase 143T Frame TEFC (rigid base) 208-230/460V Century Motor # TE110
TE110 Century 1-1/2 hp 3600 RPM 3-Phase 143T Frame TEFC (rigid base) 208-230/460V Century Motor # TE110

Century Electric Motor

TE110 Century 1-1/2 hp 3600 RPM 3-Phase 143T Frame TEFC (rigid base) 208-230/460V Century Motor # TE110

(No reviews) Write a Review
$574.43
$486.80
SKU TE110
UPC 7.87E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 208/230/460V
Horsepower 1/2 HP
RPM 3600
Phase Three Phase
Frame 143T
Enclosure TEFC
Hertz 60 Hz
Amperage 3.9/1.95 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1 1/2 hp 3600 RPM, 3.9/1.95 amps 208-230/460 Volts 60hz. Three Phase
  • NEMA 143T frame, Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base with dual frame mounting holes, Reversible, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty. Meets NEMA premium efficiencies

General purpose motors are for use in situations not having special requirements. This is a three phase motor with a rigid base mount. Shaft has keyway. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. TE110





Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 208/230/460V
Horsepower 1/2 HP
RPM 3600
Phase Three Phase
Frame 143T
Enclosure TEFC
Hertz 60 Hz
Amperage 3.9/1.95 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
