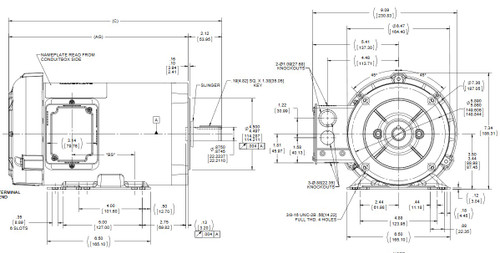

GT1206 Marathon 2 hp 3600 RPM 3-Phase 145TC Frame TEFC (rigid base) 230/460V Marathon Motor

GT1206 Marathon 2 hp 3600 RPM 3-Phase 145TC Frame TEFC (rigid base) 230/460V Marathon Motor

This Marathon 2 hp motor is a general-purpose, three-phase electric motor designed for various industrial applications. It features a rigid base and a C-face mount, making it suitable for direct coupling with pumps, gear heads, or other machinery requiring a keyed shaft.

Key Specifications

• Horsepower: 2 hp
• RPM: 3600
• Voltage: 230/460 V
• Amperage: 5.0/2.5 A
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Frame / Diameter: NEMA 145TC
• Shaft Dimensions: 7/8" Diameter x 2 1/4" Length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor includes a rigid base for stable mounting and features a C-face with four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing easy attachment of pumps or gear heads. The shaft is keyed for secure coupling. A wiring diagram is provided on the motor nameplate to assist with installation.

Warranty

1 Year Manufacturer Warranty
