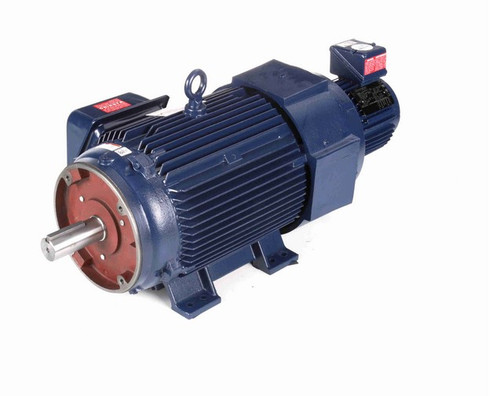

Y582 Marathon 20 hp 1200 RPM 3-Phase 286TC Frame TEBC (rigid base) 230/460V Marathon Motor

• 20 hp 1200 RPM, 52.5/26.2 amps 230/460 Volts 60 Hz 3-Phase. Encoder Ready
• NEMA 284TC Cast Iron frame, C-face, Keyed Shaft 1 7/8" Diameter x 4 5/8"
• Service Factor: 1.0, Overload protection = Thermostat
• Rigid Base, Reversible, Ball Bearings, Class H Insulation
• 1 Year Manufacture Warranty

Inverter (Vector) duty three phase electric motor with a C-face mount. 20:1 constant torque. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEBC = Totally Enclosed Blower-Cooled. 286THFPA8086
