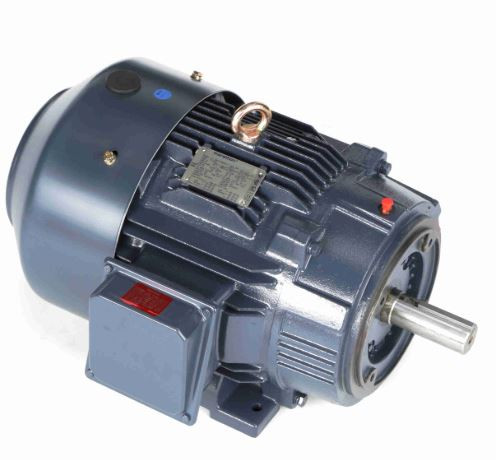

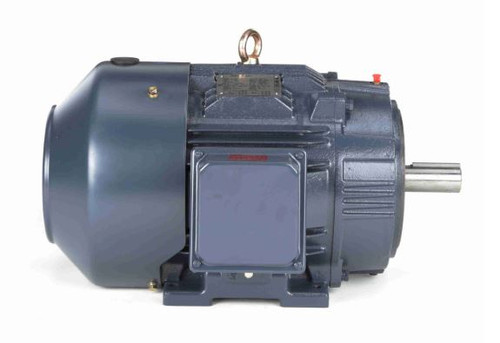

GT1224A Marathon 20 hp 3600 RPM 256TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1224A Marathon 20 hp 3600 RPM 256TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1224A Marathon 20 hp 3600 RPM 256TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1224A Marathon 20 hp 3600 RPM 256TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1224A Marathon 20 hp 3600 RPM 256TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1224A Marathon 20 hp 3600 RPM 256TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1224A Marathon 20 hp 3600 RPM 256TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1224A Marathon 20 hp 3600 RPM 256TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor

Marathon

GT1224A Marathon 20 hp 3600 RPM 256TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor

(No reviews) Write a Review
$1,958.57
$1,608.85
SKU GT1224A
UPC 7.23E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 20 HP
RPM 3600
Phase Three Phase
Frame 256TC
Enclosure TEFC
Hertz 60 Hz
Amperage 47.5/23.7 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting C-Face
Adding to cart… The item has been added
Description
  • 20 hp 3600 RPM, 47.5/23.7 amps 230/460 Volts 60hz. Three Phase Motor
  • NEMA 256TC Frame Keyed Shaft 1 5/8 " Diameter x 4"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor with a C-face mount. Motor has rigid base with C-Face mount. Shaft has keyway. Motor has threaded bolt holes on face for mounting a pump or gear head to the motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

256TTFCD6003 Replaces Leeson C256T34FK3A, 171588.00, B199061.00, 199061.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 20 HP
RPM 3600
Phase Three Phase
Frame 256TC
Enclosure TEFC
Hertz 60 Hz
Amperage 47.5/23.7 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting C-Face
!
