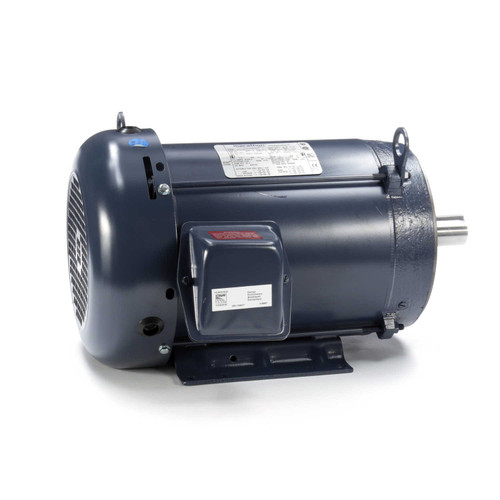

GT1215A Marathon 7.5 hp 3600 RPM 213TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor

GT1215A Marathon 7.5 hp 3600 RPM 213TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor

The GT1215A is a general-purpose, three-phase electric motor designed for industrial applications requiring a 7.5 hp motor with a C-face mount. It replaces Leeson models C215T34FK11AA, 140770.00, B199055.00, and 199055.00, offering reliable performance in various machinery setups.

Key Specifications

• Horsepower: 7.5 hp
• RPM: 3600
• Voltage: 230/460 V
• Amperage: 18.4/9.2 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 213TC
• Shaft Dimensions: 1 3/8" diameter x 3 3/8" length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount combined with a C-face configuration, allowing for versatile installation options. The shaft includes a keyway for secure coupling, and the face has threaded bolt holes to facilitate mounting pumps or gearheads directly to the motor. A wiring diagram is provided on the motor nameplate for easy electrical connections.

Cross Reference

• Leeson C215T34FK11AA, 140770.00, B199055.00, 199055.00

Warranty

1 Year Manufacturer Warranty
