1/20HP, 6 RPM
90 Volts DC, 0.24 FLA
100 Output Torque (Inch pounds)
Shaft: 1/2 x 1.25 inch useable, keyed
Gear ratio: 340:1
Enclosure rating: IP55

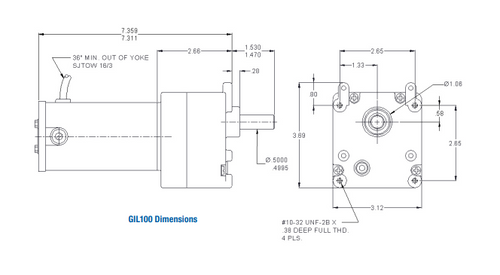

The GL100 Series Gearbox, when matched with the appropriate RAE motor, is a versatile parallel shaft, medium torque gearmotor offering long gear life in a reduced noise design.
• Gearbox Designed to AGMA Standards
• Oil Filled
• Needle Bearings (Gearbox)
• High Energy Ceramic Magnets
• Double Shielded Ball Bearings (Motor)
• Dynamically Balanced Armature
• Reversible Design
• 36” Cord
• TENV Design
• Externally Replaceable Brushes
• Auto-Hook Tang Type Commutator
• Class “F” Insulation
Cross References - This motor is a suggested replacement for the following motors. RPM, amps, shaft length, etc may not be exact, please double check your application and mounting requirement.
Leeson M1115002.00
WEG GH1002
Dayton 6Z911
Bodine 199, 0199
Baldor GPP231108
Bison 011-190-0362
RAE 2423299
