1/8HP, 364 RPM
90 Volts DC, 1.55 FLA
21 Output Torque (Inch pounds)
Shaft: 5/8 x 1.25 inch, keyed
Gear ratio: 5:1
Enclosure rating: IP55

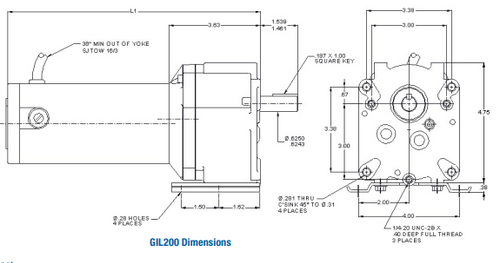

The GIL200 Series Gearbox, when matched with the appropriate RAE motor, provides high output torque in a compact, rugged diecast parallel shaft gearmotor design
• Gearbox Designed to AGMA Standards
• Oil Filled
• Needle Bearings (Gearbox)
• High Energy Ceramic Magnets
• Double Shielded Ball Bearings (Motor)
• Dynamically Balanced Armature
• Reversible Design
• 36” “Cord
• TENV Design
• Externally Replaceable Brushes
• Auto-Hook Tang Type Commutator
• Class “F” Insulation
Cross References - This motor is a suggested replacement for the following motors. RPM, amps, shaft length, etc may not be exact, please double check your application and mounting requirement.
WEG GH2011
Baldor GPP12555
Bison 011-336-2011
RAE 3130367
