3130-361 RAE | Parallel Shaft Gearmotor - 90VDC, 26 RPM

1/8HP, 26 RPM
90 Volts DC, 1.5 FLA
280 Output Torque (Inch pounds)
Shaft: 5/8 x 1.25 inch, keyed
Gear ratio: 69:1
Enclosure rating: IP55

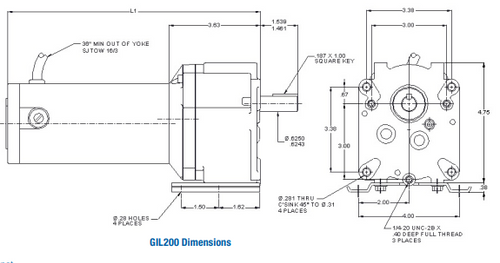

The GIL200 Series Gearbox, when matched with the appropriate RAE motor, provides high output torque in a compact, rugged diecast parallel shaft gearmotor design

• Gearbox Designed to AGMA Standards
• Oil Filled
• Needle Bearings (Gearbox)
• High Energy Ceramic Magnets
• Double Shielded Ball Bearings (Motor)
• Dynamically Balanced Armature
• Reversible Design
• 36” “Cord
• TENV Design
• Externally Replaceable Brushes
• Auto-Hook Tang Type Commutator
• Class “F” Insulation

Cross References - This motor is a suggested replacement for the following motors. RPM, amps, shaft length, etc may not be exact, please double check your application and mounting requirement.
Leeson M1125069
WEG GH2005
Dayton 4Z130
Bodine 4156
Baldor GPP12556
Bison 011-336-2082
RAE 3130361
