The 2423-302 RAE Parallel Shaft Gearmotor is a versatile replacement motor designed for medium torque applications. It serves as a suggested substitute for various Leeson, WEG, Baldor, Bison, and RAE models, offering reliable performance in industrial and HVAC systems.

Key Specifications

• Horsepower: 1/17 HP
• RPM: 65
• Voltage: 90 VDC
• Amperage: 0.46 FLA
• Enclosure: IP55

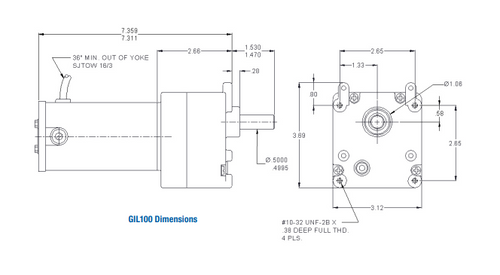

• Shaft Dimensions: 1/2" diameter x 1.25" usable length, keyed
• Bearings: Double shielded ball bearings (motor), needle bearings (gearbox)

Product Features & Fitment

This gearmotor features the GL100 Series gearbox, engineered to AGMA standards for long gear life and reduced noise. The oil-filled gearbox includes needle bearings, while the motor incorporates high energy ceramic magnets, a dynamically balanced armature, and an auto-hook tang type commutator. The reversible design and externally replaceable brushes facilitate maintenance. A 36-inch cord and TENV (Totally Enclosed Non-Ventilated) enclosure support versatile installation options. Please verify RPM, amperage, shaft length, and mounting requirements to ensure compatibility with your specific application.

Cross Reference

• s
• Leeson M1125003
• WEG GH1005
• Baldor GPP230025
• Bison 011-190-0025
• RAE 2423302
