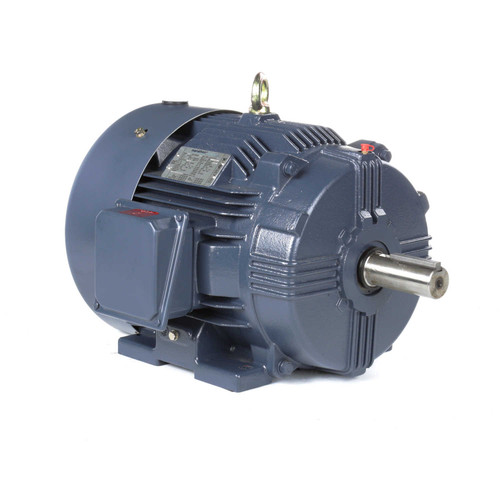

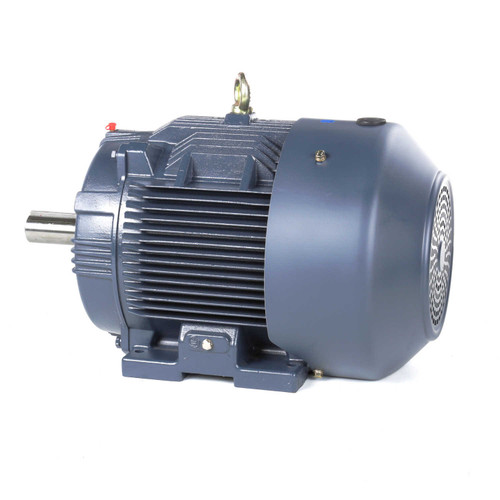

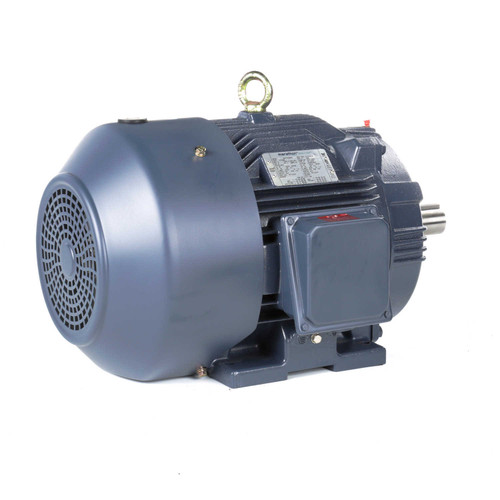

GT1028A Marathon 25 hp 1800 RPM 284T Frame 230/460V TEFC Marathon Electric Motor

SKU:: GT1028A
UPC:
Weight:: 400.00 LBS
Width:: 36.00 (in)
Height:: 28.00 (in)
Depth:: 20.00 (in)
Shipping:: Calculated at Checkout
ON SALE:: LIMITED TIME DISCOUNT
Voltage:: 230/460V
Horsepower:: 25 HP
RPM:: 1800
Phase:: Three Phase
Frame:: 284T Frame
Enclosure:: TEFC
Hertz:: 60 Hz
Amperage:: 61.0/30.5 Amps
Bearings:: Ball Bearings
Service Factor:: 1.15
Insulation Class:: Class F
Mounting:: Rigid Base

Current Stock:

Was: $2,875.00

Now: $2,184.94

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

GT1028A Marathon 25 hp 1800 RPM 284T Frame 230/460V TEFC Marathon Electric Motor

The GT1028A is a 25 horsepower, three-phase electric motor designed for general-purpose industrial applications. It replaces Leeson models 170011.60, B199022.00, 199022.00, and Dayton 44Z350, providing reliable performance in various machinery requiring a robust motor solution.

Key Specifications

Horsepower: 25 hp
RPM: 1800
Voltage: 230/460 V
Amperage: 61.0/30.5 A
Enclosure: Totally Enclosed Fan Cooled (TEFC)
Frame / Diameter: NEMA 284T Frame
Shaft Dimensions: 1 7/8" Diameter x 4 5/8" Length
Rotation: Reversible
Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount with a keyed shaft for secure installation and easy coupling to driven equipment. The wiring diagram is conveniently located on the motor nameplate to assist with proper electrical connections. It is equipped with Class F insulation and a service factor of 1.15, designed to handle moderate overload conditions without built-in overload protection.
