1254 Nidec | 3/4 hp 1075 RPM 1-Speed 208-230, 380, 460V; 5.6" Condenser Motor

1254 Nidec | 3/4 hp 1075 RPM 1-Speed 208-230, 380, 460V; 5.6" Condenser Motor

This 3/4 horsepower condenser motor is designed for HVAC applications, providing reliable single-speed operation at 1075 RPM. It serves as a suggested aftermarket replacement for Quantum Precision condenser fan motors including models K55HXWDS-457, K55HXWDS-117, 102002900, DS0177011B, and K055CLG1465011B.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1075
• Voltage: 208-230, 380, 460V
• Amperage: 4.6/2.3 amps (50/60 Hz)
• Enclosure: Open enclosure air over with enclosed end shield at shaft end

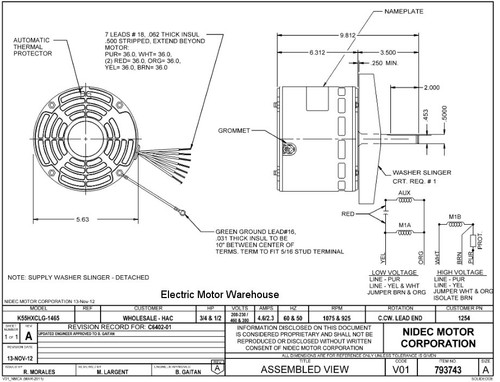

• Frame / Diameter: 5.6" diameter
• Shaft Dimensions: 1/2" diameter x 3.5" length
• Rotation: Clockwise (CW) shaft end
• Bearings: Ball bearings

Product Features & Fitment

This permanent split capacitor motor includes automatic overload protection and is rated for continuous duty with Class B insulation, suitable for ambient temperatures up to 40°C. It features a washer slinger covering one end of the motor and requires a 15 MFD 370V capacitor (Part #15DV) for operation. The motor is designed for vertical shaft-up mounting only and comes with 36" leads for easy installation.

Cross Reference

• Quantum Precision condenser fan motor K55HXWDS-457, K55HXWDS-117, 102002900, DS0177011B, K055CLG1465011B

Warranty

1 Year Manufacturer Warranty
