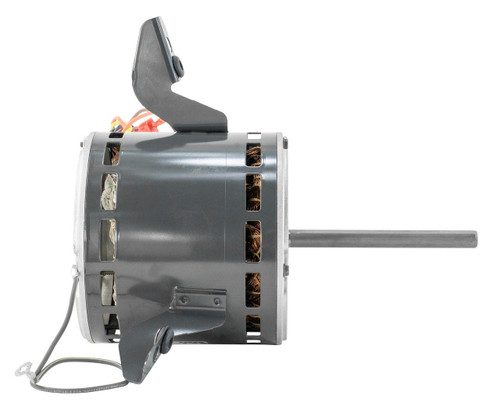

3/4 hp 1075 RPM 3-Speed 115V 5-5/8" Dia. Furnace Motor (Direct Interchange to Century/AO Smith FML1076)
This 3/4 horsepower furnace blower motor is a direct replacement for Century/AO Smith FML1076 and similar models. Designed for reliable performance in residential and commercial HVAC systems, it supports three-speed operation for versatile airflow control.
Key Specifications
- Horsepower: 3/4 hp
- RPM: 1075
- Voltage: 115 V
- Amperage: 9.2 A
- Frame / Diameter: 5-5/8" Dia.
- Shaft Dimensions: 1/2" x 6.0"
- Rotation: Reversible
- Bearings: Ball Bearings
- Enclosure: Open Ventilated - Air Over
Product Features & Fitment
This motor features a torsion flex mount with bolt circle diameters of 9" and 10" for flexible installation. It includes 24" leads for easy wiring and requires a 15 MFD 370V capacitor (not included). The motor is thermally protected with Class B insulation and operates efficiently up to a 40° ambient temperature. It is a direct interchange for models including Century/AO Smith FML1076, FML1076V1, F48V36A01 (3-speed only), Packard 43789, MARS 10689, and Dayton 4MB40.
Cross Reference
- the following models
- Century/AO Smith FML1076, FML1076V1, F48V36A01 (This replacement is only 3 speed)
- Packard 43789
- MARS 10689
- Dayton 4MB40
Warranty
1 Year Manufacturer Warranty
