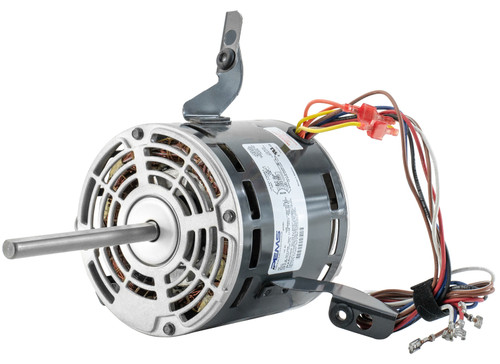

3/4 HP 1075 RPM 3-Speed 208-230V 5-5/8" Dia. Furnace Motor (Direct Interchange to Century/AO Smith FM1076)

3/4 HP 1075 RPM 3-Speed 208-230V 5-5/8" Dia. Furnace Motor (Direct Interchange to Century/AO Smith FM1076)

This 3/4 HP furnace blower motor is designed for direct replacement of Century/AO Smith FM1076 and compatible models. It is ideal for HVAC applications requiring a reliable, reversible, 3-speed motor with flexible mounting options.

Key Specifications

• Horsepower: 3/4 HP
• RPM: 1075
• Voltage: 208-230V
• Amperage: 4.6 Amps
• Frame / Diameter: 5-5/8" Diameter
• Shaft Dimensions: 1/2" x 6.0"
• Rotation: Reversible
• Bearings: Ball Bearings
• Enclosure: Open Ventilated - Air Over

Product Features & Fitment

This motor features a torsion flex mount with bolt circle diameters of 9" and 10" for versatile installation. It operates at three speeds (high, medium, low) and requires a 15 MFD 370V capacitor (not included) for proper function. The motor includes 24" leads for easy wiring and is designed for operation in ambient temperatures up to 40°C. Manufactured by Nidec Corp., it is a suggested replacement for Century/AO Smith FM1076, Packard 43790, MARS 10690, and Dayton 4MB58 models.

Cross Reference

• the following models
• Century/AO Smith FM1076
• Packard 43790
• MARS 10690
• Dayton 4MB58

Warranty

1 Year Manufacturer Warranty
