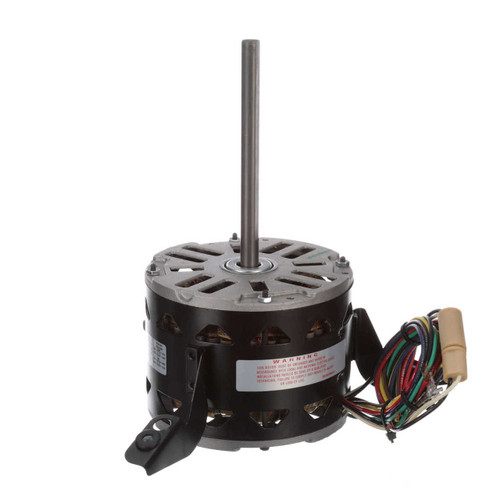

FM1026 Century 1/4 hp 1075 RPM 3-Speed 208-230V 5.6" Dia. Furnace Motor Century # FM1026

FM1026 Century 1/4 hp 1075 RPM 3-Speed 208-230V 5.6" Dia. Furnace Motor

This Century FM1026 is a direct drive furnace blower motor designed for reliable performance in residential and commercial HVAC systems. It serves as a replacement for models such as F48N90A01, Dayton 4MB52, and GE 3S005, providing efficient airflow and quiet operation.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1075
• Voltage: 208-230V, 50/60 Hz
• Amperage: 1.4 Amps
• Frame / Diameter: 5.6" Diameter
• Shaft Dimensions: 1/2" x 5.5"
• Rotation: Reversible
• Bearings: Sleeve Bearings

Product Features & Fitment

The motor features a torsion flex mount and comes with 24" leads for easy wiring. It requires a 5 MFD 370V capacitor (not included) for proper operation. Designed with an open ventilated, air-over enclosure and all-angle mount sleeve bearings, it is thermally protected and UL recognized for safety. The motor length excluding the shaft is 4.11", and it is rated for operation in ambient temperatures up to 50°.

Warranty

1 Year Manufacturer Warranty
