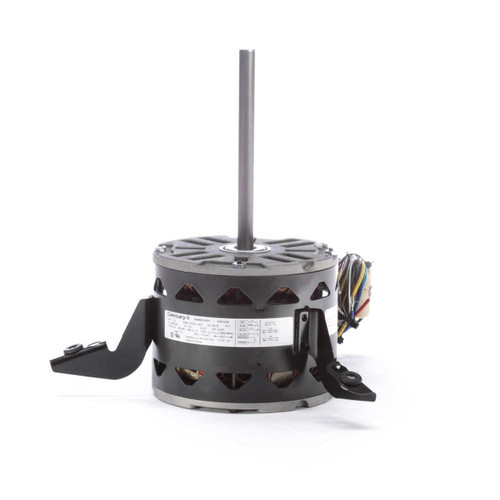

FM1036 Century 1/3 hp 1075 RPM 3-Speed 208-230V 5.6" Dia. Furnace Motor Century # FM1036

FM1036 Century 1/3 hp 1075 RPM 3-Speed 208-230V 5.6" Dia. Furnace Motor

The FM1036 is a direct drive furnace blower motor designed for reliable performance in HVAC applications. It serves as a suggested replacement for models including GE Genteq 3S007, 5KCP39FFY921S, 5KCP39FFS396S, and Dayton 4MB54, 6DLP3.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1075
• Voltage: 208-230V, 50/60 Hz
• Amperage: 2.7 Amps
• Frame / Diameter: 5.6" Diameter
• Shaft Dimensions: 1/2" x 5-1/2"
• Rotation: Reversible
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a 3-speed design with a torsion flex mount and is suitable for all-angle mounting. It includes 24" leads for easy wiring and requires a 7.5 MFD 370V capacitor (not included) for operation. The motor is thermally protected, UL recognized, and CSA certified, with an open ventilated air-over design optimized for 50° ambient temperatures. The motor length excluding the shaft measures 4.36".

Cross Reference

• GE Genteq 3S007, 5KCP39FFY921S, 5KCP39FFS396S
• Dayton 4MB54, 6DLP3

Warranty

1 Year Manufacturer Warranty
