3913 Nidec | 3/4 hp 1140 RPM, 208-230/460V; 6.5" Condenser Motor

3913 Nidec | 3/4 hp 1140 RPM, 208-230/460V; 6.5" Condenser Motor

This 3/4 horsepower condenser motor is designed for HVAC applications requiring a reliable, three-phase power source. It serves as a direct replacement for motors with similar specifications, providing efficient and continuous operation in condenser fan systems.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1140
• Voltage: 208-230/460V
• Amperage: 3.5/1.7 amps
• Enclosure: Open Air Over Case

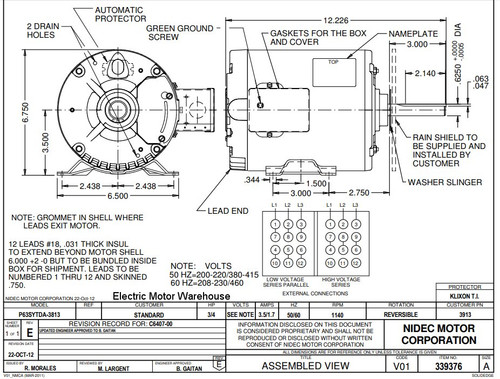

• Frame / Diameter: 6.5" diameter
• Shaft Dimensions: 5/8" x 3" (flat & keyway)
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a 1.0 service factor and is rated for continuous duty with Class B insulation suitable for 60°C ambient temperatures. It includes automatic overload protection and a rain shield for enhanced durability. The motor is designed for vertical shaft up installation and has a motor case length of 10.6".

Warranty

1 Year Manufacturer Warranty
