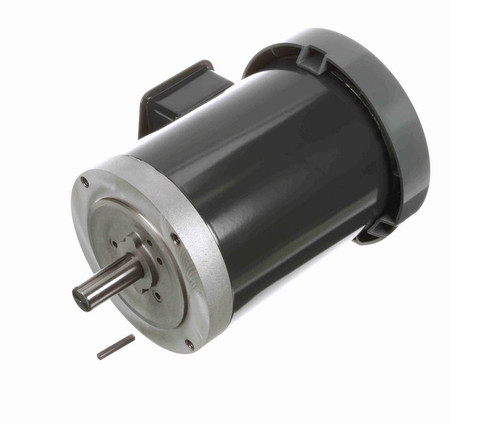

K1318 Marathon 3/4 hp 1200 RPM 3-Phase 143TC Frame TEFC (no base) 208-230/460V Marathon Motor

• 3/4 hp 1200 RPM, 2.9-2.9/1.4 amps 208-230/460 Volts 50-60hz. 3-Phase
• NEMA 143TC frame, C-face, Keyed Shaft 7/8" Diameter x 2 1/4"
• Service Factor: 1.15, Overload protection = None
• No Base, Reversible, Ball Bearings, Class B Insulation
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 5K49PN8030
