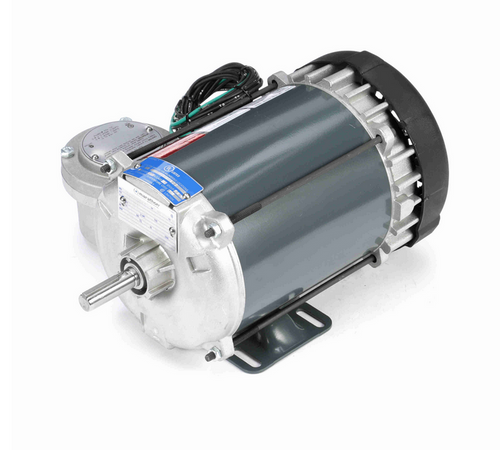

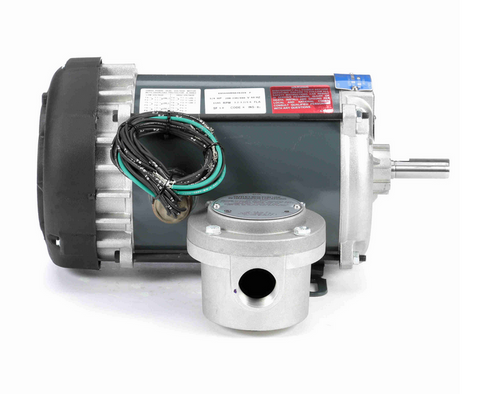

K2116 Marathon 3/4 hp 1200 RPM 3-Phase 56 Frame TEFC (rigid base) 208-230/460V Marathon Motor
K2116 Marathon 3/4 hp 1200 RPM 3-Phase 56 Frame TEFC (rigid base) 208-230/460V Marathon Motor
K2116 Marathon 3/4 hp 1200 RPM 3-Phase 56 Frame TEFC (rigid base) 208-230/460V Marathon Motor
K2116 Marathon 3/4 hp 1200 RPM 3-Phase 56 Frame TEFC (rigid base) 208-230/460V Marathon Motor
K2116 Marathon 3/4 hp 1200 RPM 3-Phase 56 Frame TEFC (rigid base) 208-230/460V Marathon Motor
K2116 Marathon 3/4 hp 1200 RPM 3-Phase 56 Frame TEFC (rigid base) 208-230/460V Marathon Motor
K2116 Marathon 3/4 hp 1200 RPM 3-Phase 56 Frame TEFC (rigid base) 208-230/460V Marathon Motor
K2116 Marathon 3/4 hp 1200 RPM 3-Phase 56 Frame TEFC (rigid base) 208-230/460V Marathon Motor

Marathon

K2116 Marathon 3/4 hp 1200 RPM 3-Phase 56 Frame TEFC (rigid base) 208-230/460V Marathon Motor

(No reviews) Write a Review
$927.94
$816.04
SKU MK2116
UPC 7.23E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 208/230/460V
Horsepower 3/4 HP
RPM 1200
Phase Three Phase
Frame 56
Enclosure TEFC
Hertz 60 Hz
Amperage 3.2/1.6 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class B
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 3/4 hp 1200 RPM, 3.2-3.2/1.6 amps 208-230/460 Volts 60 Hz. 3-Phase
  • NEMA 56 frame, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.0, Overload protection = Auto
  • Rigid Base, Reversible, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

Explosion-Proof three phase electric motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled.  5K49MN6382

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 208/230/460V
Horsepower 3/4 HP
RPM 1200
Phase Three Phase
Frame 56
Enclosure TEFC
Hertz 60 Hz
Amperage 3.2/1.6 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class B
Mounting Rigid Base
!
