C271 Marathon 3/4 hp 1200 RPM 56 Frame 115/230V Totally Enclosed Marathon Electric Motor

SKU:
C271
Weight:
44.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $795.30
Now: $705.70
Adding to cart… The item has been added
  • 3/4 hp 1200 RPM, 10.6/5.3 amps 115/230 Volts 60hz. Capacitor Start/Run Motor

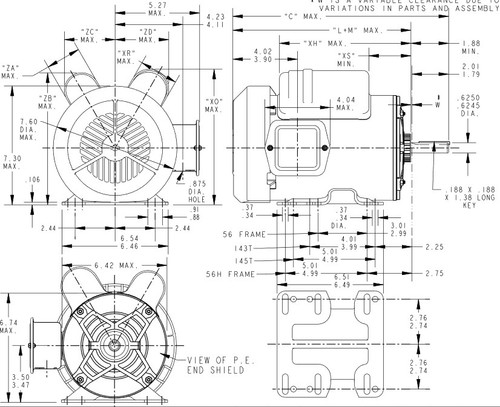

  • NEMA 56 Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.0, Overload protection = None
  • Reversible, Rigid Base Mount, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase electric motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled

Marathon Model: 5KCR48WN6066

Replaces Leeson 110400.00
