EG276 Marathon 3/4 hp 1800/1500 RPM 56 Frame 100-120/200-400V Totally Enclosed Marathon Electric Motor
(No reviews)
Write a Review
Write a Review
Marathon
EG276 Marathon 3/4 hp 1800/1500 RPM 56 Frame 100-120/200-400V Totally Enclosed Marathon Electric Motor
$442.52
$284.17
SKU
EG276
UPC
7.23E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
100/120/200/400V
Horsepower
3/4 HP
RPM
1800
Phase
Single Phase
Frame
56
Enclosure
TEFC
Hertz
60 Hz
Amperage
4.4 Amps
Bearings
Ball Bearings
Service Factor
1.25
Insulation Class
Class B
Mounting
Rigid Base
- 3/4 hp 1800/1500 RPM, 9.0-8.8/4.5-4.4 amps 110-120/200-400 Volts 60hz. Capacitor Start/Run Motor
- NEMA 56 Frame Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.25, Overload protection = None
- Reversible, Rigid Base Mount, Ball Bearings, Class B Insulation
- 1 Year Manufacture Warranty

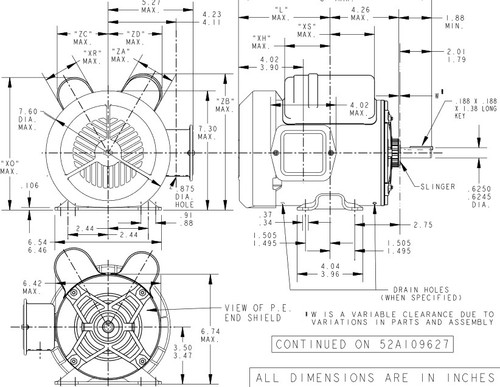

General purpose motor can be used for many applications requiring a single phase electric motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled, 5KCR49PN0101
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 100/120/200/400V |
| Horsepower | 3/4 HP |
| RPM | 1800 |
| Phase | Single Phase |
| Frame | 56 |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 4.4 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.25 |
| Insulation Class | Class B |
| Mounting | Rigid Base |
