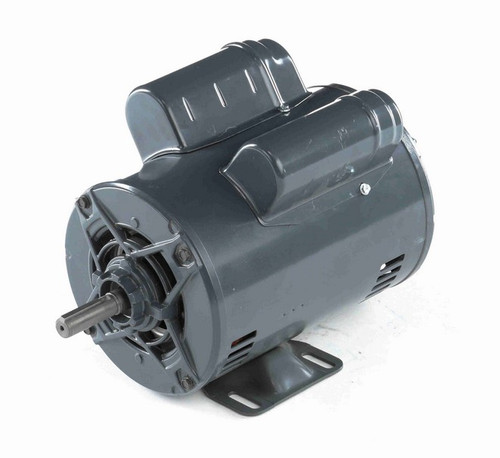

S015A Marathon 3/4 hp 1800 RPM 56 Frame 115/208-230V Open Drip Marathon Electric Motor

S015A Marathon 3/4 hp 1800 RPM 56 Frame 115/208-230V Open Drip Marathon Electric Motor

This Marathon 3/4 horsepower electric motor is designed for general-purpose applications requiring a reliable single-phase motor. It is suitable for replacing or upgrading motors in HVAC systems and industrial equipment.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1800
• Voltage: 115/208-230V, 60 Hz
• Amperage: 6.6/3.5-3.3 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This capacitor start/run motor features a rigid base mount for stable installation and includes a keyed shaft for secure coupling. The motor has a service factor of 1.25 and automatic overload protection for enhanced durability. Wiring diagrams are provided on the motor nameplate to assist with proper electrical connections.

Warranty

1 Year Manufacturer Warranty
