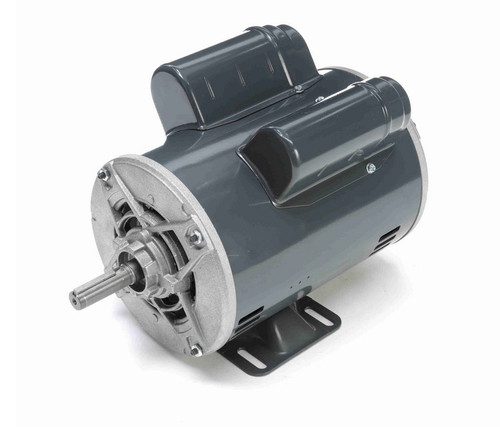

C176A Marathon 3/4 hp 1800 RPM 56 Frame 115/208-230V Open Drip Marathon Electric Motor

SKU:: C176A
UPC:
Availability:: IN STOCK
Weight:: 27.00 LBS
Width:: 10.00 (in)
Height:: 11.00 (in)
Depth:: 17.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 115/208/230V
Horsepower:: 3/4 HP
RPM:: 1800
Phase:: Single Phase
Frame:: 56
Enclosure:: ODP
Hertz:: 60 Hz
Amperage:: 3.3 Amps
Bearings:: Ball Bearings
Service Factor:: 1.25
Insulation Class:: Class B
Mounting:: Rigid Base

Current Stock:

Was: $495.42

Now: $431.37

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

C176A Marathon 3/4 hp 1800 RPM 56 Frame 115/208-230V Open Drip Marathon Electric Motor

This Marathon general-purpose single-phase electric motor delivers 3/4 horsepower at 1800 RPM and is suitable for a wide range of industrial applications. It replaces Leeson A56B17DRR70006A3A and meets equivalent specifications for reliable performance.

Key Specifications

Horsepower: 3/4 hp
RPM: 1800
Voltage: 115/208-230V, 60 Hz
Amperage: 6.6/3.5-3.3 amps
Enclosure: Open Drip Proof (ODP)
Frame / Diameter: NEMA 56 Frame
Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
Rotation: Reversible
Bearings: Ball Bearings

Product Features & Fitment

This capacitor start/run motor features a rigid base mount for secure installation and includes a wiring diagram on the motor nameplate for easy setup. It is equipped with a service factor of 1.25 and automatic overload protection to enhance durability and operational safety.
