sale
Nidec

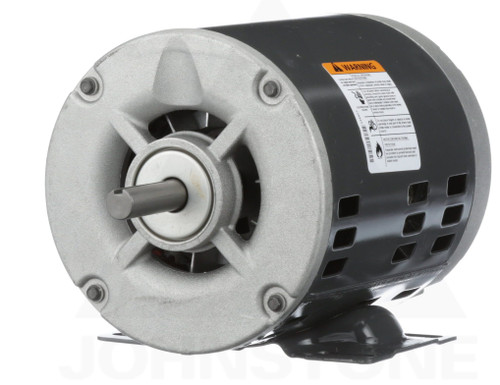

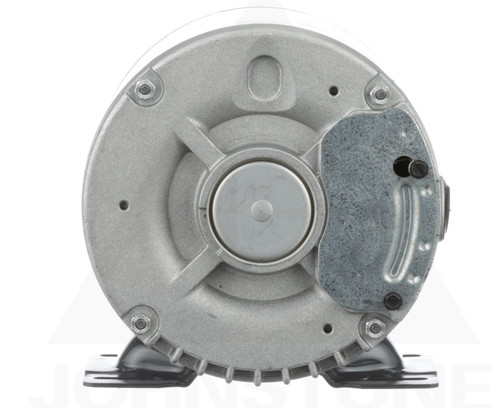

D34P2AH Nidec | 3/4 hp 1800 RPM 56 Frame 208-230/460V Open Drip Nidec Electric Motor
(No reviews)
Write a Review
Write a Review
Nidec
D34P2AH Nidec | 3/4 hp 1800 RPM 56 Frame 208-230/460V Open Drip Nidec Electric Motor
$345.00
$259.95
SKU
D34P2AH
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
208/230/460V
Horsepower
3/4 HP
RPM
1800
Phase
Three Phase
Frame
56
Enclosure
ODP
Amperage
2.8/1.4 Amps
Bearings
Ball Bearings
Service Factor
1.25
Insulation Class
Class B
Mounting
Rigid Base
Duty
Continuous Duty
D34P2AH Nidec | 3/4 hp 1800 RPM 56 Frame 208-230/460V Open Drip Nidec Electric Motor
This general-purpose three-phase electric motor is designed for continuous duty applications requiring reliable and efficient performance. It is a premium efficient replacement motor suitable for various industrial and HVAC equipment.
Key Specifications
- Horsepower: 3/4 hp
- RPM: 1800
- Voltage: 208-230/460 V
- Amperage: 2.8/1.4 A
- Enclosure: Open Drip Proof (ODP)
- Frame / Diameter: NEMA 56 Frame
- Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
The motor features a rigid base mount for secure installation and is equipped with Class B insulation suitable for 40°C ambient temperatures. It includes a wiring diagram on the motor nameplate for easy electrical connections. This motor does not include overload protection and has a service factor of 1.25.
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 208/230/460V |
| Horsepower | 3/4 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 56 |
| Enclosure | ODP |
| Amperage | 2.8/1.4 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.25 |
| Insulation Class | Class B |
| Mounting | Rigid Base |
| Duty | Continuous Duty |
