T34S2G Nidec | 3/4 hp 1800 RPM 56 Frame 575V TEFC Nidec Electric Motor
T34S2G Nidec | 3/4 hp 1800 RPM 56 Frame 575V TEFC Nidec Electric Motor
T34S2G Nidec | 3/4 hp 1800 RPM 56 Frame 575V TEFC Nidec Electric Motor
T34S2G Nidec | 3/4 hp 1800 RPM 56 Frame 575V TEFC Nidec Electric Motor

Nidec

T34S2G Nidec | 3/4 hp 1800 RPM 56 Frame 575V TEFC Nidec Electric Motor

(No reviews) Write a Review
$280.60
$250.13
SKU T34S2G
UPC 6.63E+11
Availability Subject to availability
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 575V
Horsepower 3/4 HP
RPM 1800
Phase Three Phase
Frame 56
Enclosure TEFC
Amperage 1.1 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Mounting Rigid Base
Duty Continuous Duty
Adding to cart… The item has been added
Description
  • 3/4 hp 1800 RPM, 1.1 amps 575 Volts Three Phase Motor
  • NEMA 56 frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class B Insulation

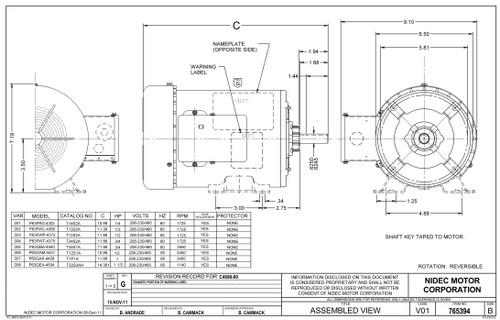

  • "C" Dimension = 11.9"
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor. Motor has a rigid base mount with a keyed shaft. Continuous Duty.  Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

Model P063GGT4564015B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 575V
Horsepower 3/4 HP
RPM 1800
Phase Three Phase
Frame 56
Enclosure TEFC
Amperage 1.1 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Mounting Rigid Base
Duty Continuous Duty
!
