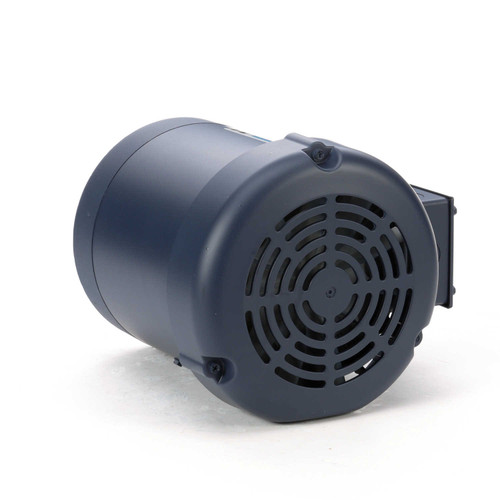

110047.00 Leeson | 3/4 hp 1800 RPM 56C Frame TEFC C-Face (No Base) 208-230/460V

DISCONTINUED. PLEASE SEE MARATHON K255

• 3/4 hp 1800 RPM, 2.8/1.4 amps 208-230/460 Volts 60hz. Three Phase Motor
• NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8"
• Service Factor: 1.15 - overload protection = None
• No Base - Reversible - Round Body Motor - Ball Bearings - Class B Insulation
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor with a C-face mount. Motor has rigid base with C-Face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

C6T17FC1G, 110047.00
