110108.00 Leeson | 3/4 hp 3450 RPM 56 Frame TEFC 115/208-230V w/overload protection

110108.00 Leeson 3/4 hp 3450 RPM 56 Frame TEFC Motor with Overload Protection

This Leeson 3/4 horsepower motor is designed for industrial and woodworking applications, including table saws and planers. It features a Totally Enclosed Fan Cooled (TEFC) design to protect against dust and debris, ensuring reliable performance in demanding environments.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 3450
• Voltage: 115/208-230V, 60 Hz
• Amperage: 10.0/5.0 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: Keyed Shaft, 5/8" Diameter x 1 7/8" Length
• Bearings: Ball Bearings

Product Features & Fitment

The motor includes manual overload protection and a service factor of 1.15, enhancing durability and safety during operation. It mounts on a rigid base and is electrically reversible for versatile installation. The motor nameplate provides a wiring diagram for straightforward electrical connections.

Warranty

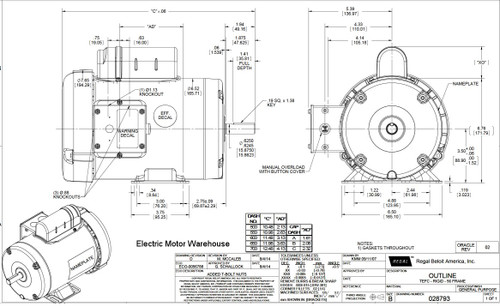

• Dimensional Drawing
