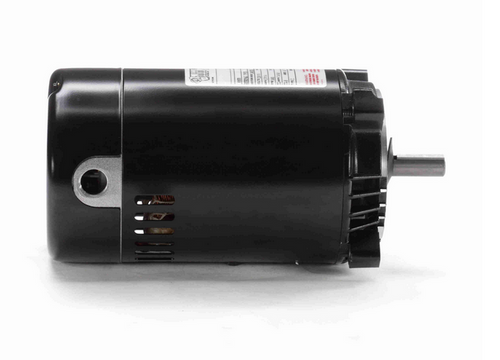

K1070 Century 3/4 hp 3600 RPM 1-Phase 56C Frame ODP (no base) 115/230V Century Jet Pump Motor # K1070

K1070 Century 3/4 hp 3600 RPM 1-Phase 56C Frame ODP (no base) 115/230V Century Jet Pump Motor

This Century K1070 motor is a 3/4 horsepower, single-phase electric motor designed for pool and spa jet pump applications. It features a NEMA 56C C-face mount and is suitable for replacing motors requiring a keyed shaft and open drip proof enclosure.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 3600
• Voltage: 115/230V
• Amperage: 11.4/5.7 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56C frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Counterclockwise (pump end)
• Bearings: Ball Bearings

Product Features & Fitment

This capacitor start motor includes a keyed shaft and four threaded bolt holes on the face for secure mounting of pumps or gear heads. The bolt holes are spaced 5 7/8" on center across the shaft. The motor does not include a base and features an automatic overload protection system. Wiring information is provided on the motor nameplate for ease of installation.

Warranty

1 Year Manufacturer Warranty
