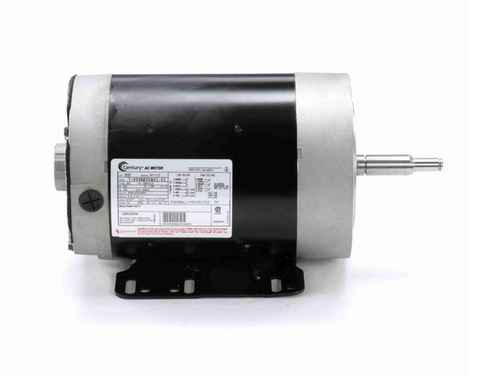

B597 Century 3/4 hp 3600 RPM 56C Frame (Rigid Base) 3 Phase TENV 208-230/460V Century Milk Pump Motor # B597

B597 Century 3/4 hp 3600 RPM 56C Frame (Rigid Base) 3 Phase TENV 208-230/460V Century Milk Pump Motor # B597

SKU:
B597
Weight:
32.00 LBS
Width:
11.00 (in)
Height:
11.00 (in)
Depth:
17.00 (in)
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:
208/230/460V
Horsepower:
3/4 HP
RPM:
3600
Phase:
Three Phase
Frame:
56C
Enclosure:
TENV
Amperage:
2.4/1.2 Amps
Bearings:
Ball Bearings
Service Factor:
1.0
Insulation Class:
Class B
Mounting:
Rigid Base
Was: $419.29
Now: $355.35
Adding to cart… The item has been added
  • 3/4 hp 3600 RPM, 2.5-2.4/1.2 amps 208-230/460 Volts 3-Phase
  • NEMA 56C frame, Shaft: 5/8" dia x 1 5/8" stainless steel with threaded end
  • Service Factor: 1.0, Overload protection = Auto
  • Rigid Base, Reversible, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

Milk pump farm motor. Stainless steel shaft. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. B597

!
