3/4 hp 900 RPM 145T Frame 208-230/460V TEFC Leeson Electric Motor # 121199

SKU:
121199
Manufacturer
Leeson
Weight:
41.00 LBS
Shipping:
Free Shipping
$573.64
  • 3/4 hp 900 RPM, 3.1/1.6 amps 208-230/460 Volts 60hz. Three Phase Motor
  • NEMA 145T Frame Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

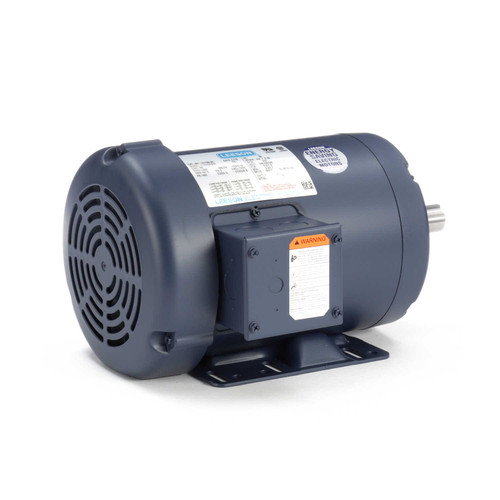

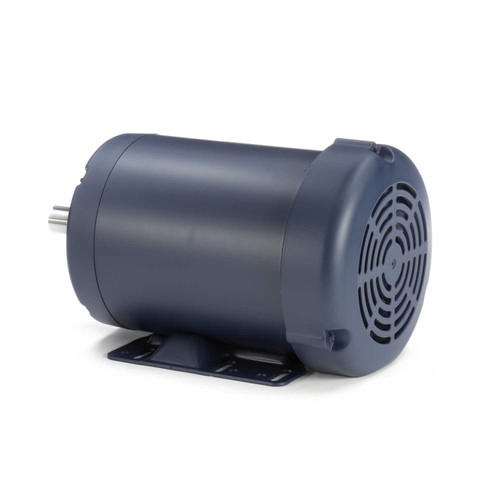

General purpose motor can be used for many applications requiring a three phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

C145T8FB5C, 121199.00, G121199
