D3P3D Nidec | 3 hp 1200 RPM 213T Frame 208-230/460V ODP Electric Motor Nidec
D3P3D Nidec | 3 hp 1200 RPM 213T Frame 208-230/460V ODP Electric Motor Nidec
D3P3D Nidec | 3 hp 1200 RPM 213T Frame 208-230/460V ODP Electric Motor Nidec
D3P3D Nidec | 3 hp 1200 RPM 213T Frame 208-230/460V ODP Electric Motor Nidec

Nidec

D3P3D Nidec | 3 hp 1200 RPM 213T Frame 208-230/460V ODP Electric Motor Nidec

(No reviews) Write a Review
$801.55
$715.30
SKU D3P3D
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 3 HP
RPM 1200
Phase Three Phase
Frame 213T
Enclosure ODP
Amperage 8.9/4.4 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Continuous Duty
Adding to cart… The item has been added
Description
  • 3 hp 1200 RPM, 8.9/4.4 amps 208-230/460V  Three Phase

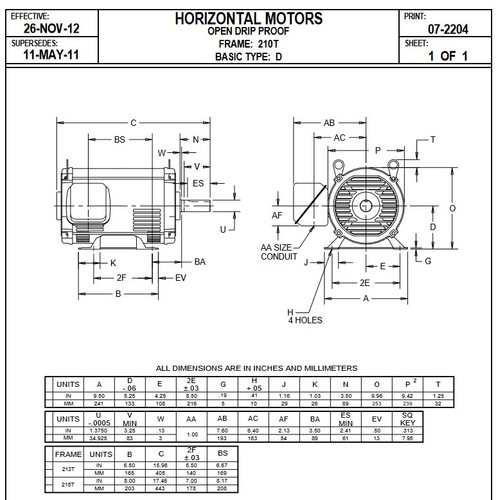

  • NEMA 213T frame Keyed Shaft 1-3/8" x 3 3/8"
  • ODP; Service Factor: 1.15, Overload protection = None
  • Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
  • Motor case length 16.5"
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty.  Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof

Model R334

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 3 HP
RPM 1200
Phase Three Phase
Frame 213T
Enclosure ODP
Amperage 8.9/4.4 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Continuous Duty
!
