D3C2P18 Nidec | 3 hp 1800 RPM 184T Frame 115/230V Open Drip Nidec Electric Motor

D3C2P18 Nidec | 3 hp 1800 RPM 184T Frame 115/230V Open Drip Nidec Electric Motor

This 3 horsepower, 1800 RPM single-phase electric motor is designed for general-purpose applications requiring reliable performance. It serves as a direct replacement for models such as Marathon F077, Dayton 6YV23, and 5K675.

Key Specifications

• Horsepower: 3 hp
• RPM: 1800
• Voltage: 115/230 V
• Amperage: 38.0/19.0 A
• Enclosure: Open Drip Proof (ODP)

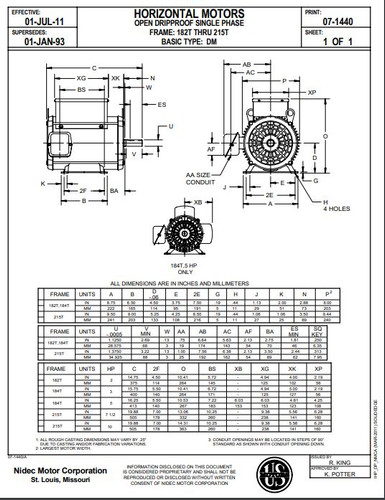

• Frame / Diameter: NEMA 184T
• Shaft Dimensions: Keyed shaft, 1 1/8" diameter x 2 3/4" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This capacitor start motor features a rigid base mount for stable installation and Class F insulation for enhanced thermal protection. The wiring diagram is conveniently located on the motor nameplate to assist with proper electrical connections. Note that this motor does not include overload protection.

Warranty

1 Year Manufacturer Warranty
