Marathon
G145 Marathon 3 hp 1800 RPM, 9.2-8.6/4.3 amps 208-230/460 Volts 60hz
(No reviews)
Write a Review
Write a Review
Marathon
G145 Marathon 3 hp 1800 RPM, 9.2-8.6/4.3 amps 208-230/460 Volts 60hz
$604.10
$535.67
SKU
G145
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
208/230/460V
Horsepower
3 HP
RPM
1800
Phase
Three Phase
Frame
56
Enclosure
ODP
Hertz
60 Hz
Amperage
8.6/4.3 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class B

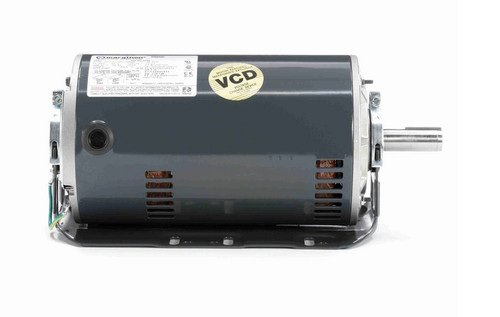

G145 Marathon 3 hp 1800 RPM Motor
The G145 Marathon motor is a versatile 3 horsepower, 1800 RPM, three-phase electric motor designed for general-purpose industrial applications. It is suitable for replacing similar NEMA 56 frame motors requiring reliable performance in various equipment.
Key Specifications
- Horsepower: 3 hp
- RPM: 1800
- Voltage: 208-230/460 Volts, 60 Hz
- Amperage: 9.2-8.6/4.3 amps
- Enclosure: Open Drip Proof (ODP)
- Frame / Diameter: NEMA 56 Frame

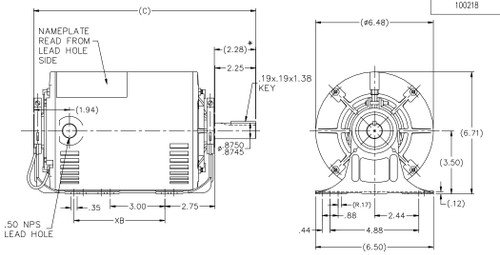

- Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
This motor features a resilient base mount for stable installation and includes an automatic overload protection system. It is equipped with Class B insulation and a Voltage Change Device (VCD) for flexible voltage configurations. Wiring diagrams are provided on the motor nameplate to assist with proper electrical connections.
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
