R321A Marathon 3 hp 2.2 kw 3600 RPM 90L Frame 230/460V Marathon Electric Metric Motor
(No reviews)
Write a Review
Write a Review
Marathon
R321A Marathon 3 hp 2.2 kw 3600 RPM 90L Frame 230/460V Marathon Electric Metric Motor
$1,150.00
$977.44
SKU
MR321A
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
230/460V
Horsepower
3 HP
RPM
3600
Phase
Three Phase
Frame
90L
Enclosure
TEFC
Amperage
7.2/3.6 Amps
Service Factor
1.15
Insulation Class
Class F
- 3 hp 2.2 kw 3600 RPM, 7.2/3.6 amps 230/460 Volts Three Phase Motor

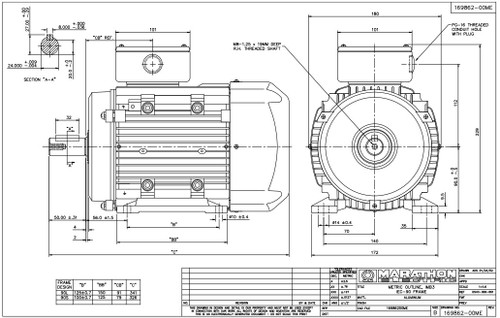

- IEC 90L Frame keyed shaft 24mm x 50mm
- TEFC - IP55 Weatherproof Enclosure - Conduit Box Location = F3 (top)
- Inverter Rated Insulation System (IRIS) - Service Factor: 1.15
- TEFC = Totally Enclosed Fan Cooled; Class F Insulation
- 1 Year Manufacture Warranty
12-Lead Delta Windings (160MD frame & larger) for across the line or wye-delta starts. Class F insulation. Oil seals on both drive end and non drive end. Drilled and tapped shaft. CSA file #LR33543, UL file #E57948,Conformite European.
090LT34FH6301
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 230/460V |
| Horsepower | 3 HP |
| RPM | 3600 |
| Phase | Three Phase |
| Frame | 90L |
| Enclosure | TEFC |
| Amperage | 7.2/3.6 Amps |
| Service Factor | 1.15 |
| Insulation Class | Class F |
